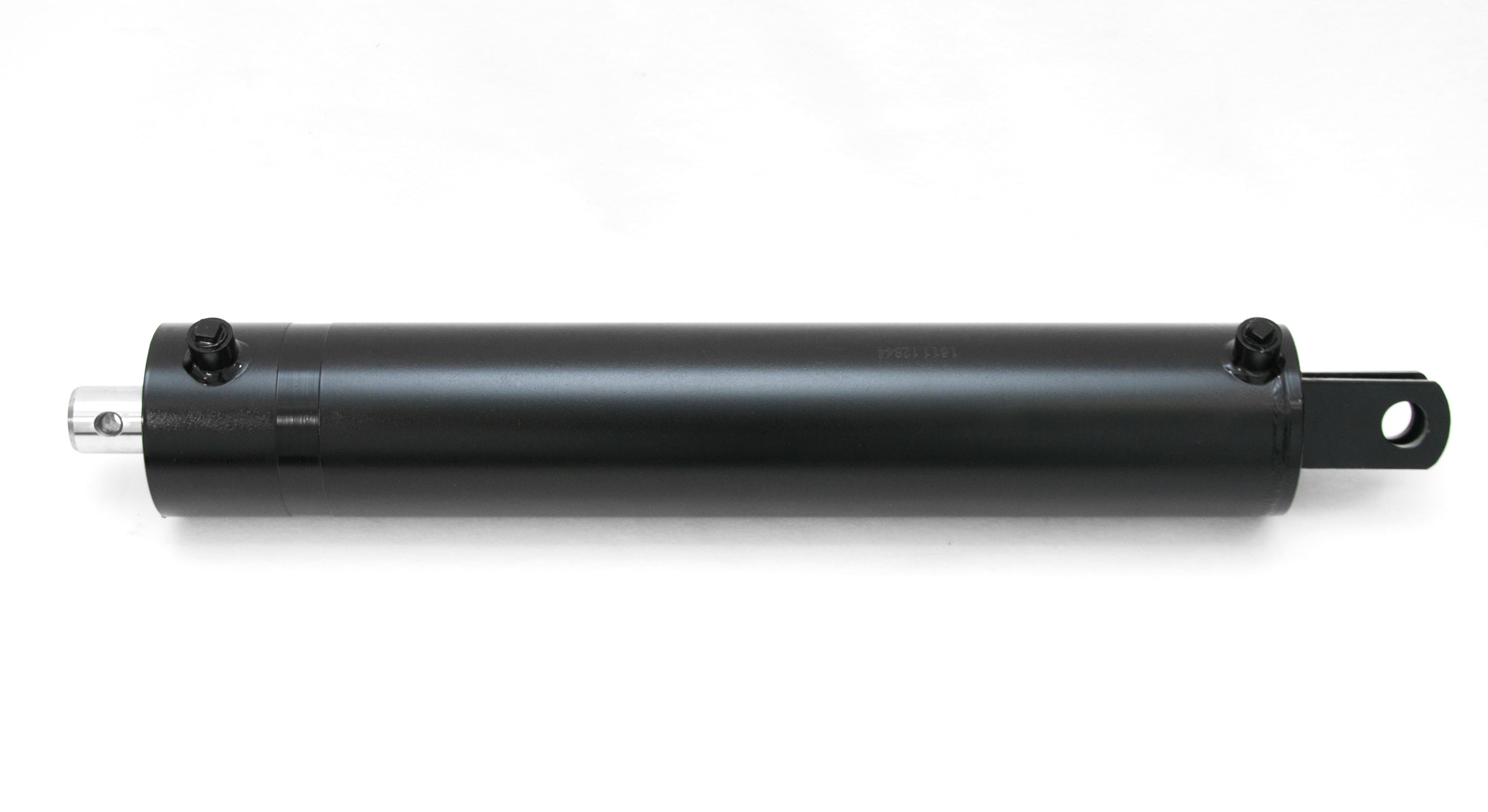

Hydraulic Log Splitter Cylinder, 4.5" Bore, 24" Stroke, Clevis Mount, OEM Replacement
4.5" Bore, 24" Stroke Hydraulic Log-Splitter Cylinder, Clevis Mount - OEM Replacement for Tractor Supply Co., Huskee, SplitMaster, Oregon, SpeeCo, and other
This cylinder is a direct replacement for many OEM double-acting, clevis-mount cylinders. Common no-modification-needed replacement for: Tractor Supply Co., Husky, SplitMaster, Oregon, SpeeCo, and many others. See diagram (above) for detailed specs for dimensions.
We are a USA-based designer, importer, and seller.
Description:
- Cylinder produces approximately 28 tons splitting force at 3500 p.s.i.; 32 tons @ 4000 p.s.i. (max.)
- Double-acting cylinder (2 ports, forward and reverse action)
- Rebuildable (seals can be replaced)
- Black powder coat
- Ships via FedEx ground to the lower 48 states only!!
Specifications (See spec sheet for detailed measurements!):
-

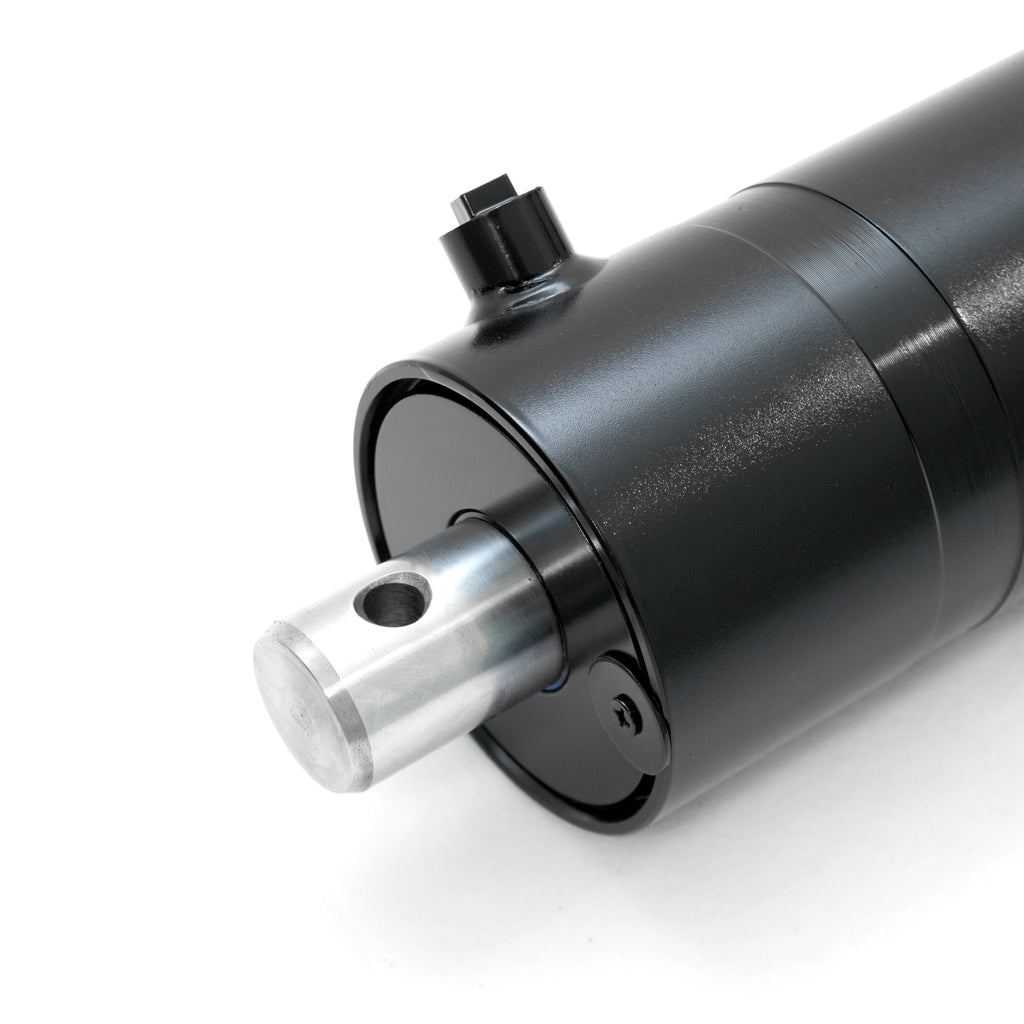

1-3/4" chrome-plated rod; 9/16" diameter hole for wedge mounting
-

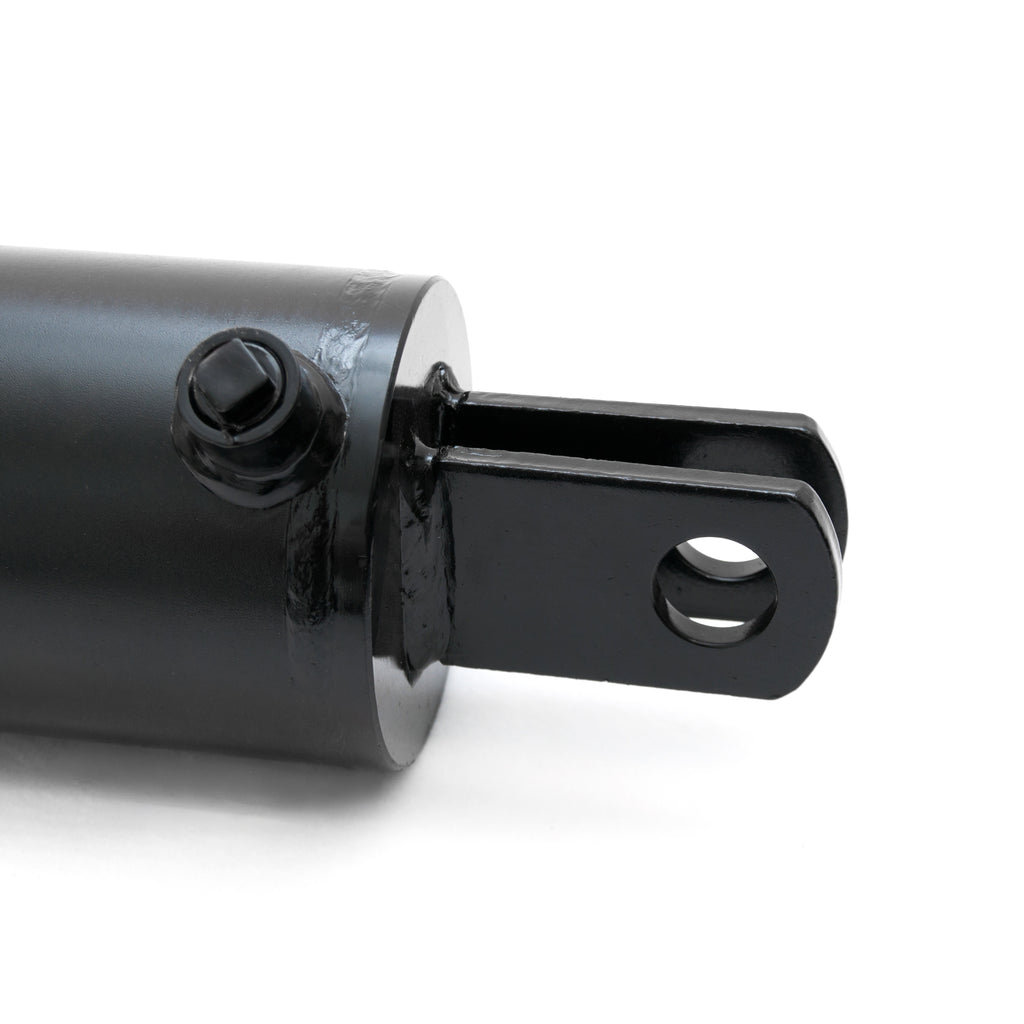

Double mounting clevis ears: spacing is 7/8"; accepts 3/4" beam
- Clevis mounting holes accepts up to 1-18" pin
- Extended length: 56-1/2"
- Retracted length: 32-1/2"
-
1/2" NPT hydraulic ports
-
4000 p.s.i. maximum operating pressure
- 5" OD (outer dimension)
