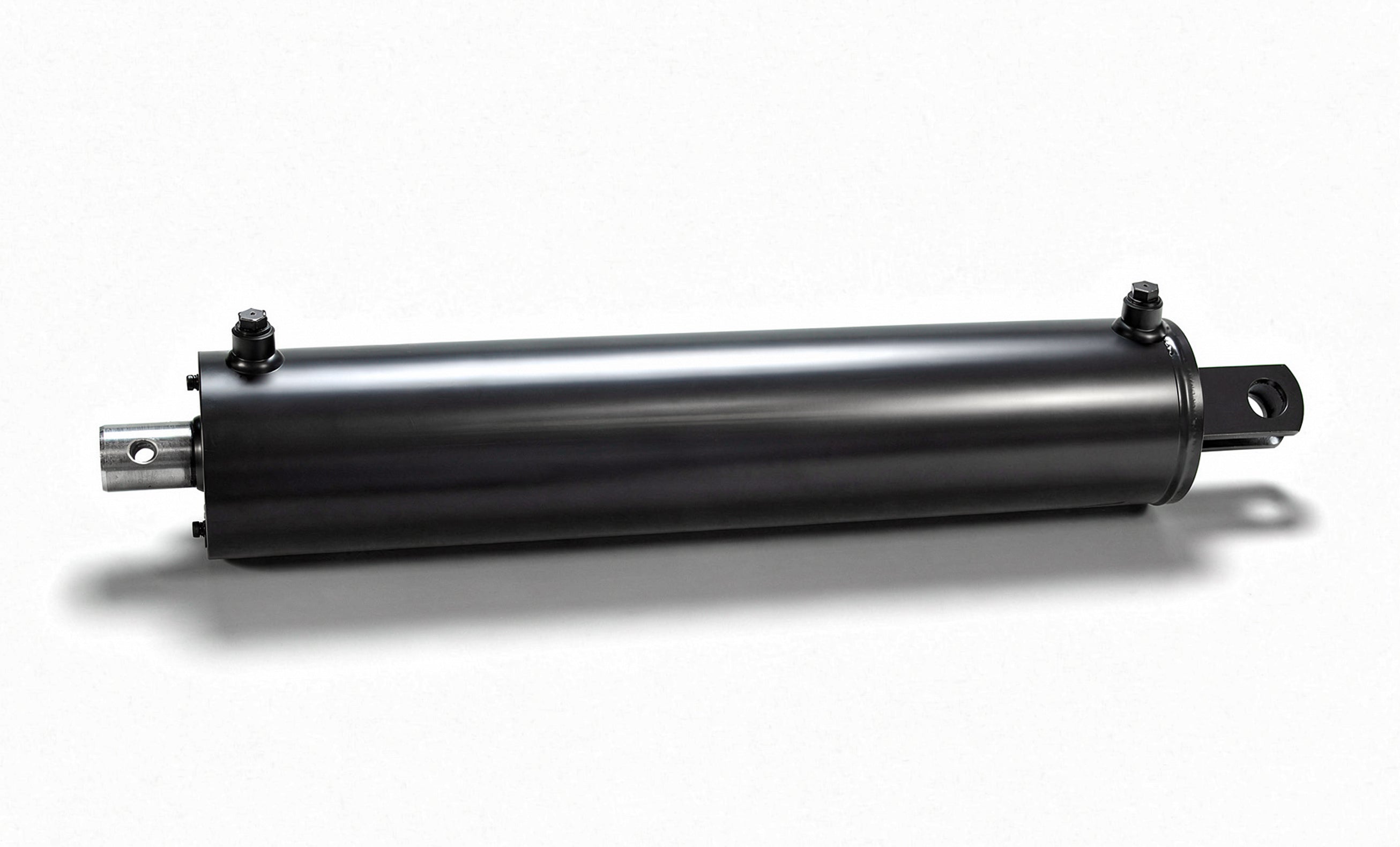

Hydraulic Log Splitter Cylinder 5" Bore x 24" Stroke, Clevis Mount, OEM Replacement

Tool Tuff

SKU: 31-113

5" Bore x 24" Stroke Hydraulic Log-Splitter Cylinder - OEM Replacement for Tractor Supply Co., Huskee, SplitMaster, Oregon, SpeeCo, and others

This cylinder is a direct replacement for many OEM double-acting, clevis-mount cylinders. Common OEM no-modification-needed replacement for: Tractor Supply Co., Huskee, SplitMaster, Oregon, SpeeCo and many others. See diagram (above) for detailed specs and dimensions.

We are a USA-based designer, importer, and seller.


  • Cylinder produces approximately 35 tons splitting force at 3500 p.s.i.; 39 tons @ 4000 p.s.i. (max.)
  • Double-acting (2 ports, forward and reverse action)
  • Rebuildable (seals can be replaced)
  • Black powder coat
  • Ships via UPS ground to the lower 48 states only!!
Specifications (See spec sheet for detailed measurements!):

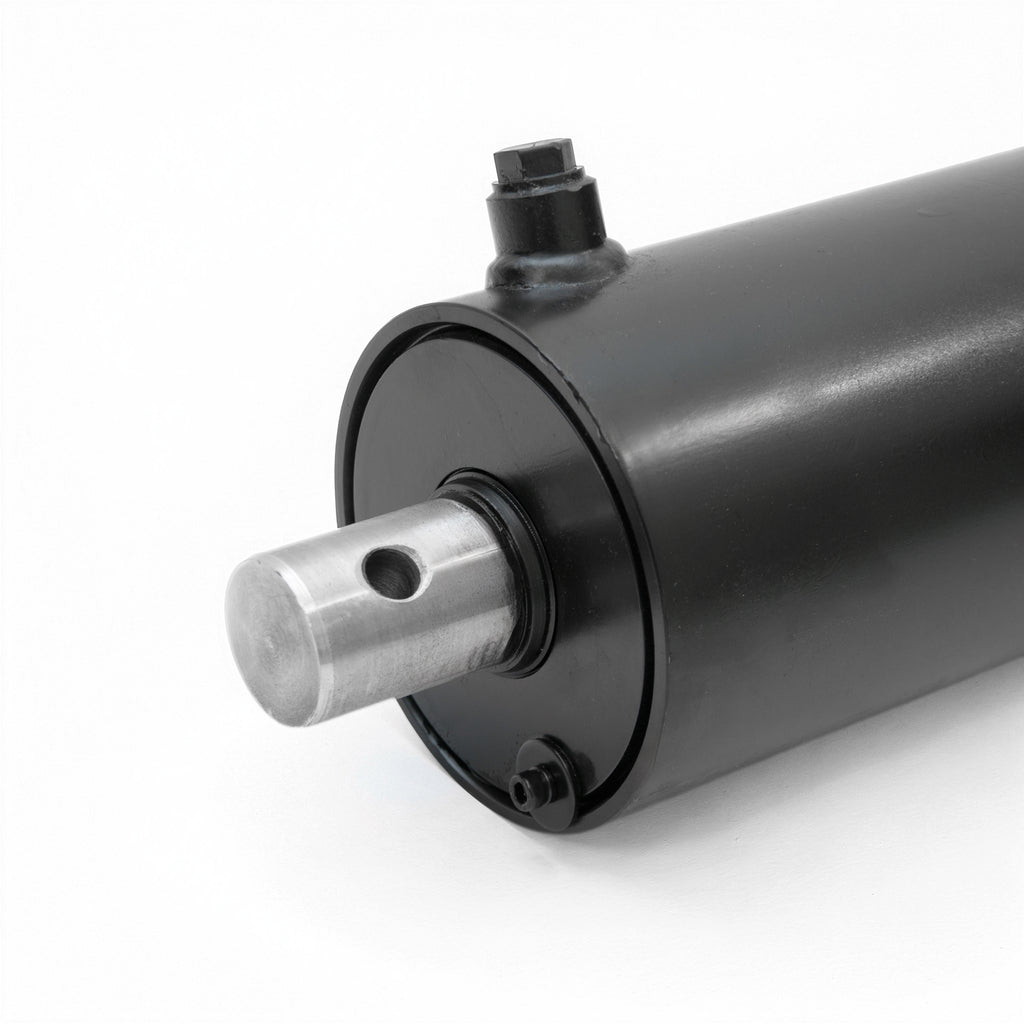

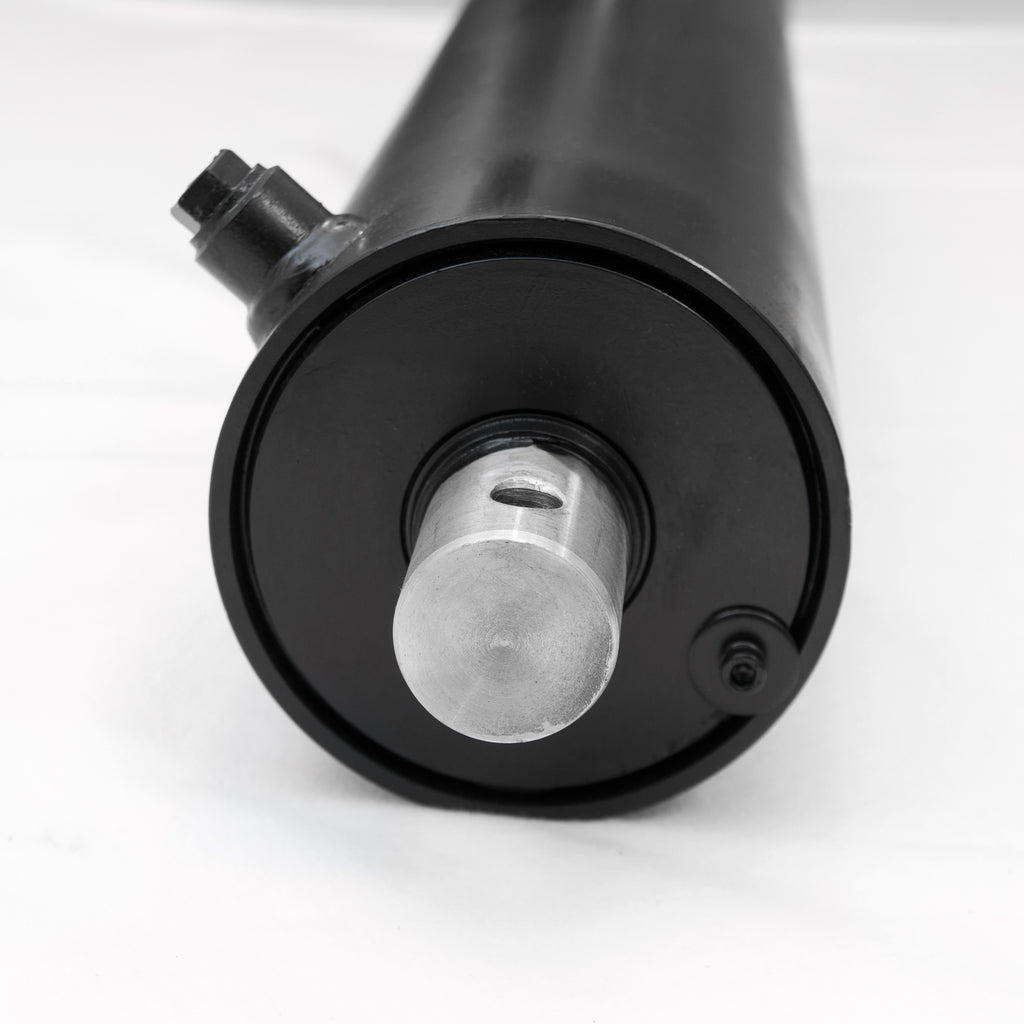

  • 2" chrome-plated rod end is machined down to 1-3/4" to fit wedge; 9/16" hole for wedge mounting

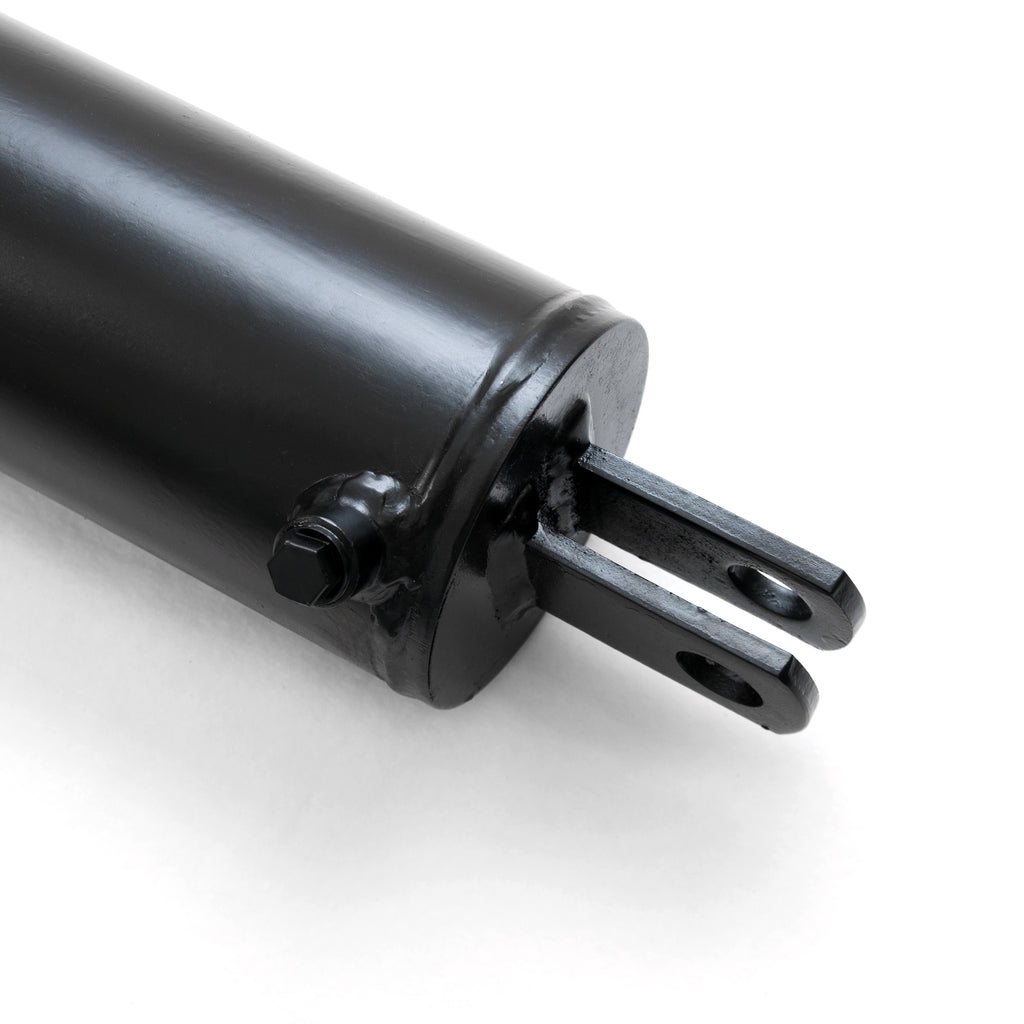

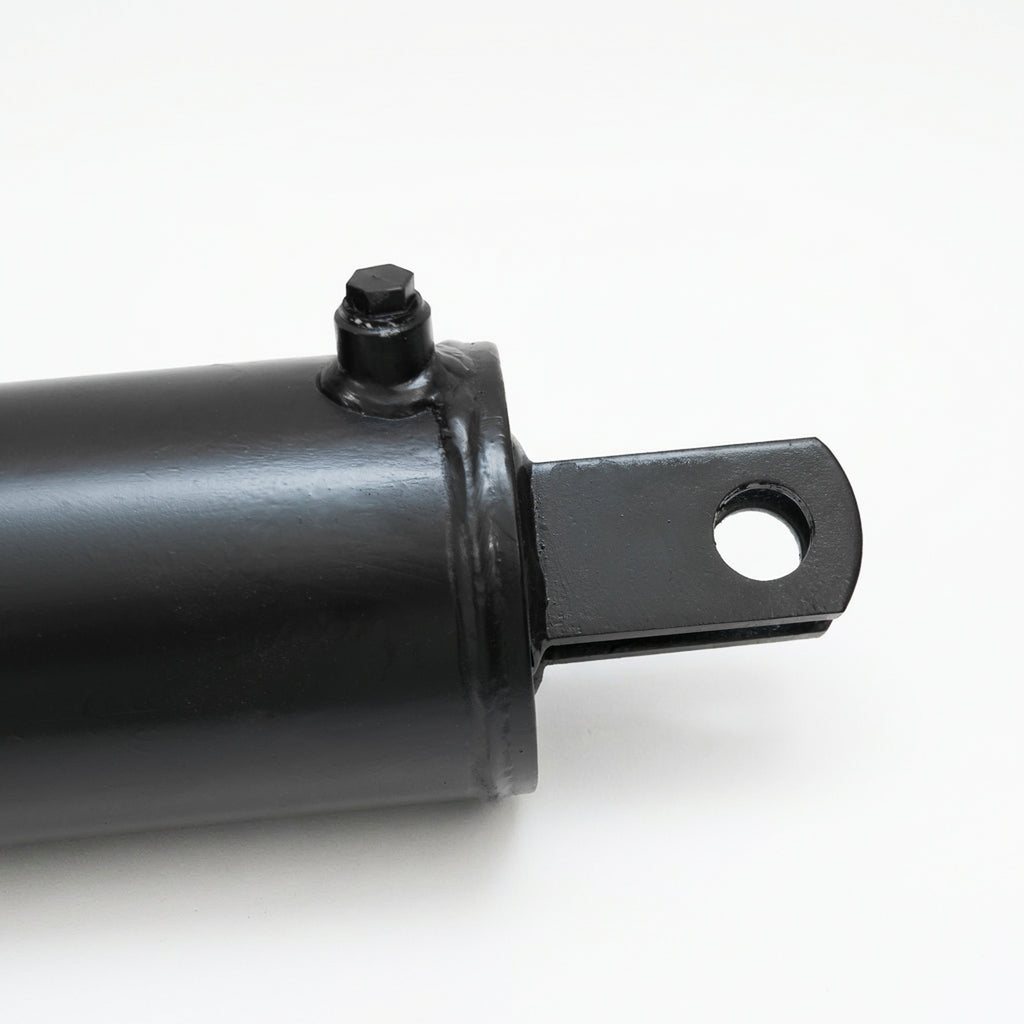

  • Clevis ears mount on either side of beam: spacing is 7/8"; accepts up to 3/4" beam
  • Clevis-mounting holes accept up to 1-1/8" pin
  • Extended length: 56-1/2"
  • Retracted length: 32-12"
  • 1/2" NPT hydraulic ports
  • 4000 maximum operating pressure
  • 5-1/2" OD (outer dimension)
