Log Splitter Build Kit: 16 GPM Pump, Mount, A7 Auto Return Valve, Bolts, Coupler - For Replacement or "Build it Yourself"

ToolTuff Direct

SKU: 30-128

16 GPM Log Splitter Pump, Mount and Coupler Kit w/Bolts

From Tool Tuff Direct - Your Source for Log Splitter Parts Since 2012!

Brand NEW 16 GPM Log Splitter Pump / 2 Stage Gear Pump

This is same pump used by SpeeCo, Champion, Oregon, MTD and many others. Use as a replacement or a "build it yourself" splitter project

The 2-stage pump can give you faster cycle times and higher possible pressure with a small engine.  Excellent for use on log splitters, 90% efficient.

Recommended 8-12hp engine


  • 16 GPM @ 3600RPM.
  • Shaft: ½” (key included)
  • Inlet: 1" diameter
  • Outlet: ½” NPT
  • Dimensions: 5.5”L  x  3”H  x  4”W
  • Minimum HP: 8
  • RPM Requirement: 3600 for 11 GPM, pump can be operated with lower RPM's
  • For use with open center hydraulic systems only
  • 1st Stage: 13 GPM@650 PSI
  • 2nd Stage: 3 GPM@2500 PSI
  • Maximum Pressure: 4000 PSI
  • Bolt Circle: 2.83in.
  • 4 Bolt Holes Spaced 2in. on Center
  • Bolt Hole Diameter: .344in.
  • Rotation: Clockwise

Medium Pump Mount:

  • Overall length: 5-1/4"
  • Pump-side bolt pattern: bolt circle 2-3/4" (corner-to-corner); bolt square 2" (on-edge) on center
  • Engine-side bolt pattern: bolt circle 5" (corner-to-corner), bolt square 3-1/2" (on-edge) on center
  • Cast iron construction
  • Compatible with Halidex, MTD, Deli, Bucher, and other 11-16gpm hydraulic pumps
  • Compatible with Briggs, Honda, Kohler, and other 8-15 HP motors

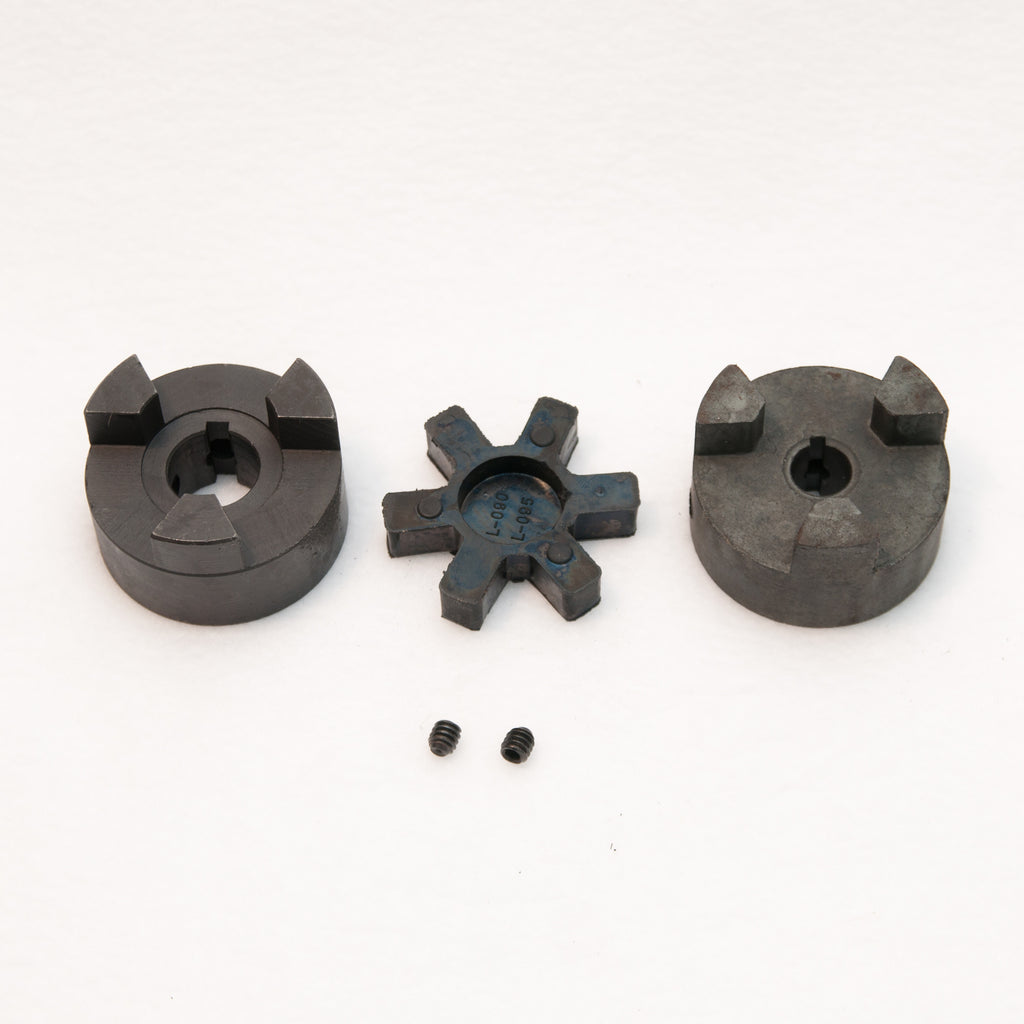

Lovejoy Coupler:

Standard kit ships with L90 coupler set, includes spider; select engine crankshaft diameter from the drop-down menu: 3/4", 7/8", 1" or 1-1/8"

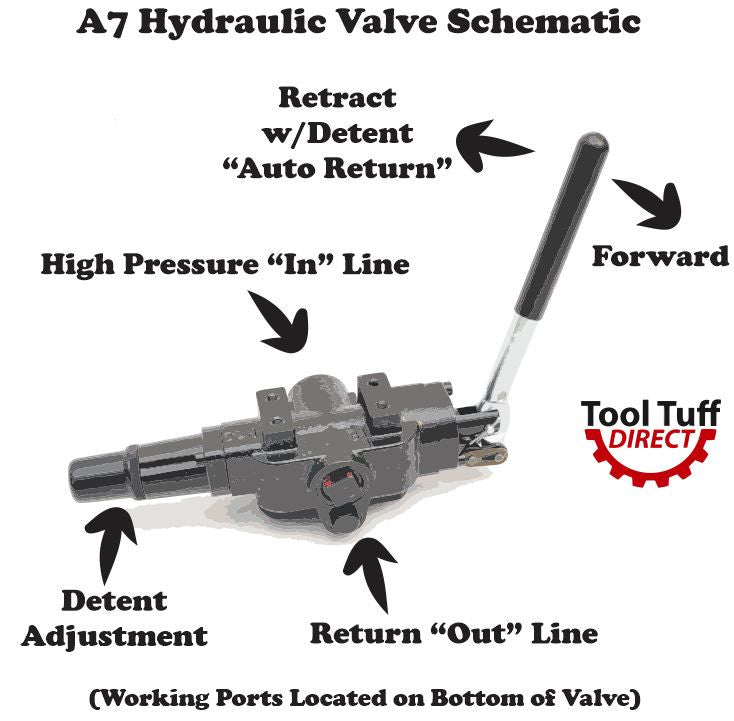

A7 Auto-Return Log Splitter Valve

(We have other valves available - if the schematic looks different than your valve, message us and we can substitute it)

Valve Specs:

Single spool, Open center.

  • Max pressure rating: 3500psi.
  • Relief valve set at 3100psi but is adjustable.
  • Working ports ½”NPT.
  • In/Out ports ¾” NPT
  • Detent Pressure set at 700 psi but is adjustable.
  • Compatible with most splitters (SpeeCo, MTD, Brave, Swisher etc)
  • Threaded end cap for easy detent adjustment


Mounting bracket holes (4) are 5/16-18 thread pitch and are spaced 1" x 2-5/8" apart

This is the next generation in log splitter valves. The detent is usually what wears out and causes valves to fail. This valve allows user to adjust the kick out pressure to what they need and as detent balls and grooves wear.


 Bolts, Lock Washers, Nuts

  • Kit comes with the necessary fasteners to bolt the mount and pump together.  You'll supply your own engine mounting bolts
