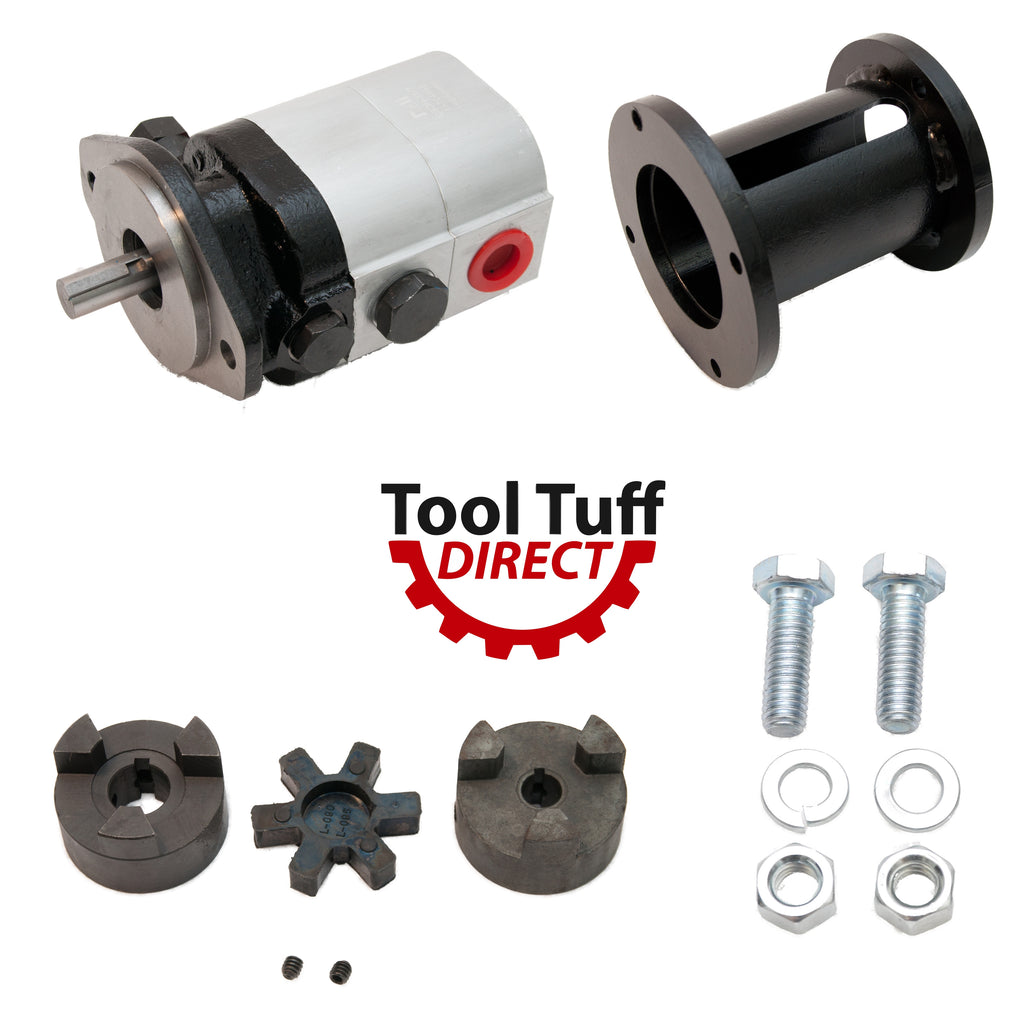

Log Splitter Build Kit 22 GPM Pump, Coupler, Mount, Bolts, Heavy Duty - For Replacement or "Build it Yourself"

ToolTuff Direct

SKU: 30-237

22 GPM Two Stage Log Splitter Pump

  • This Versatile, high quality pump is ideal for log splitters or any other piece of equipment requiring high speed low pressure and low speed high pressure circuits.
  • 16 and 6 GPM gear-sets combine for 22 GPM total
  • Max Pressure 4000psi intermittent, 3000PSI continuous
  • Max RPM: 4000
  • Shaft size 5/8"
  • Key 3/16"
  • Inlet 1" NPT
  • Outlet 3/4" NPT
  • Requires about 11hp or more to run efficiently.
  • Looking at shaft side, pump spins clockwise


Large Pump Mount

  • New Hydraulic Pump & Gas Engine Adapter Mount
  • Make sure this will fit before ordering as not all engines have standard mounting
  • Works with any of the 22gpm and 28gpm 2-stage log splitter pumps
  • The hole pattern for the pump side is the standard SAE-A 2-bolt pattern
  • Bracket Length is approx. 5.5"


LoveJoy Coupler

  • This kit includes two LO90 coupler halves and one rubber spider to connect the pump to your engine.  Choose your engine crankshaft size from the drop-down menu, 7/8", 1" or 1-1/8".
  • Pump to Mount Bolts, Lock Washers, Nuts
  • Includes the required bolts, nuts and lock washers required to mount the pump to the mount.  You'll supply your own engine mounting bolts.
