Tool-Tuff 12 Volt DC Electro Hydraulic Power Unit for Snow Plows, 2 Qt Tank, Direct fit for Meyers, Western & Many Others
Snow Plow Power Unit

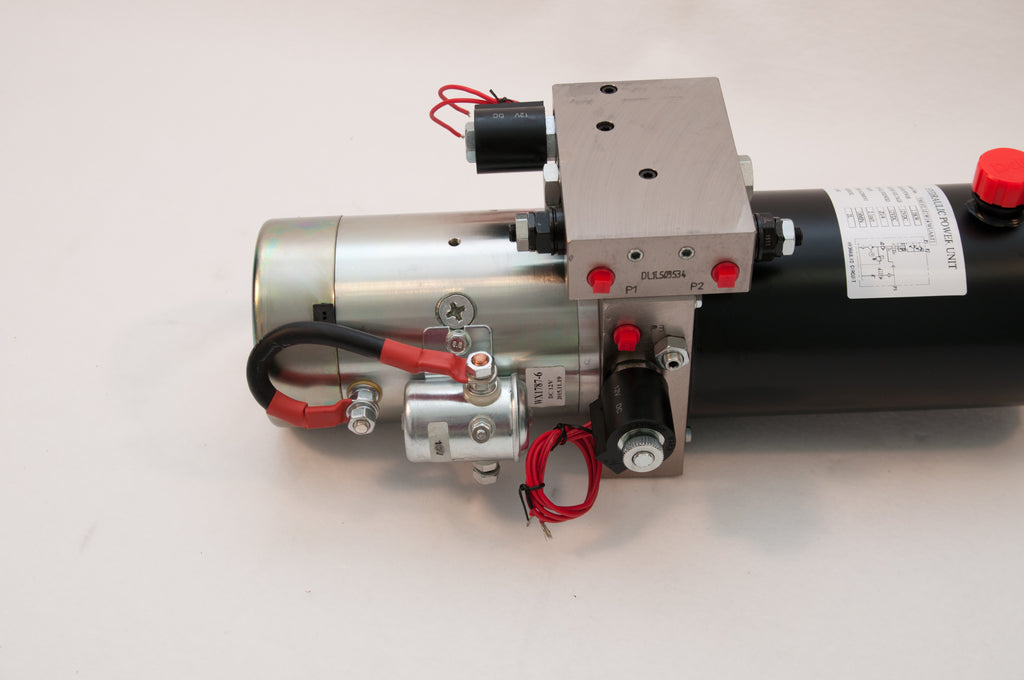

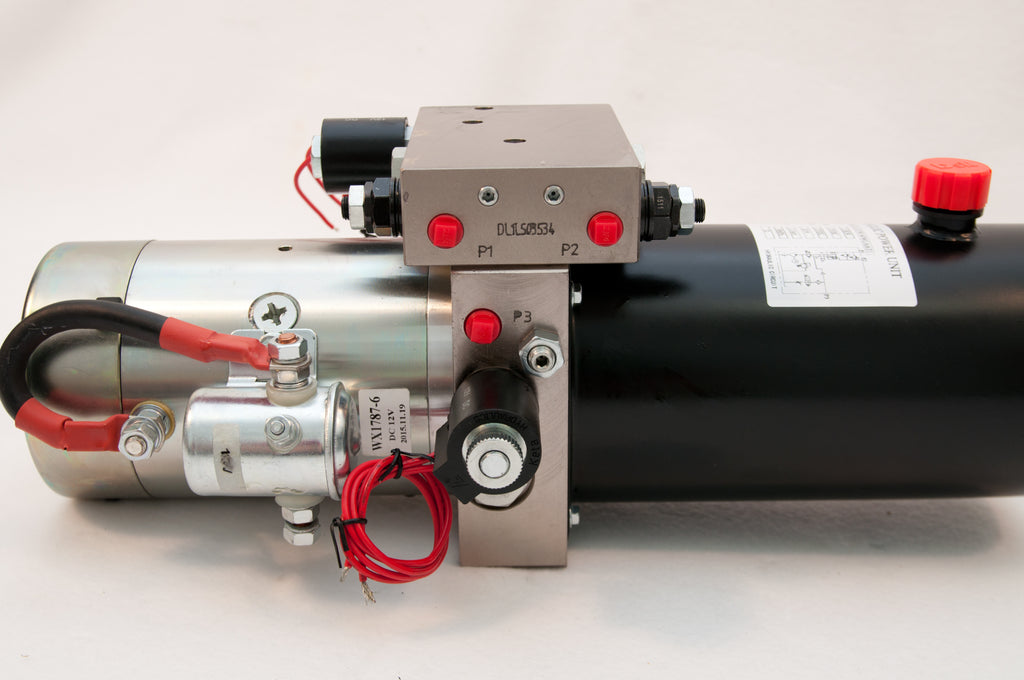

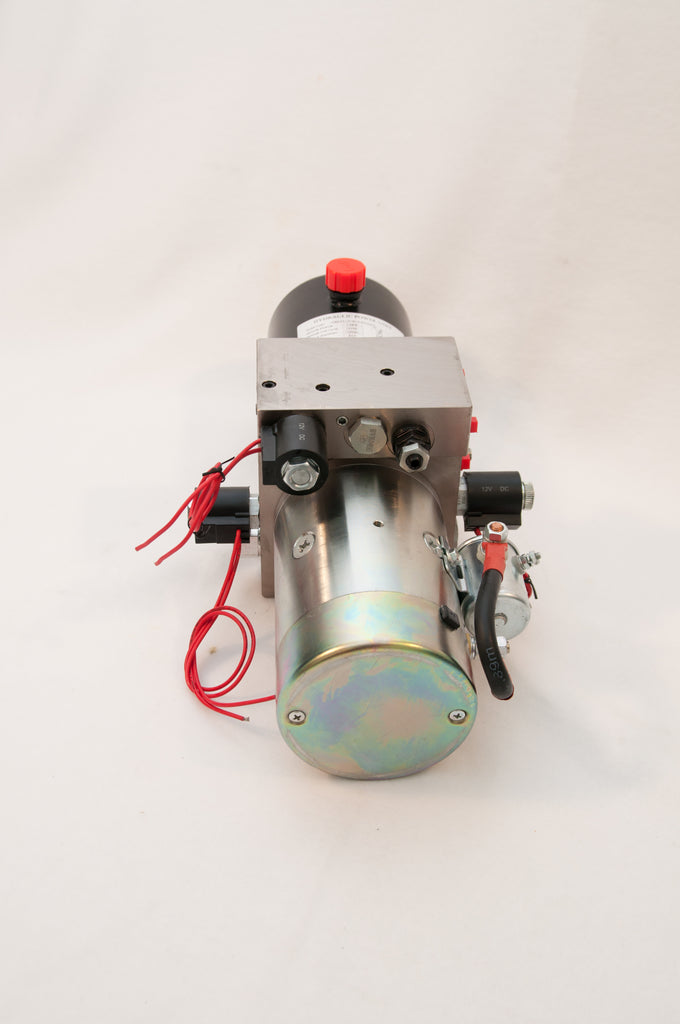

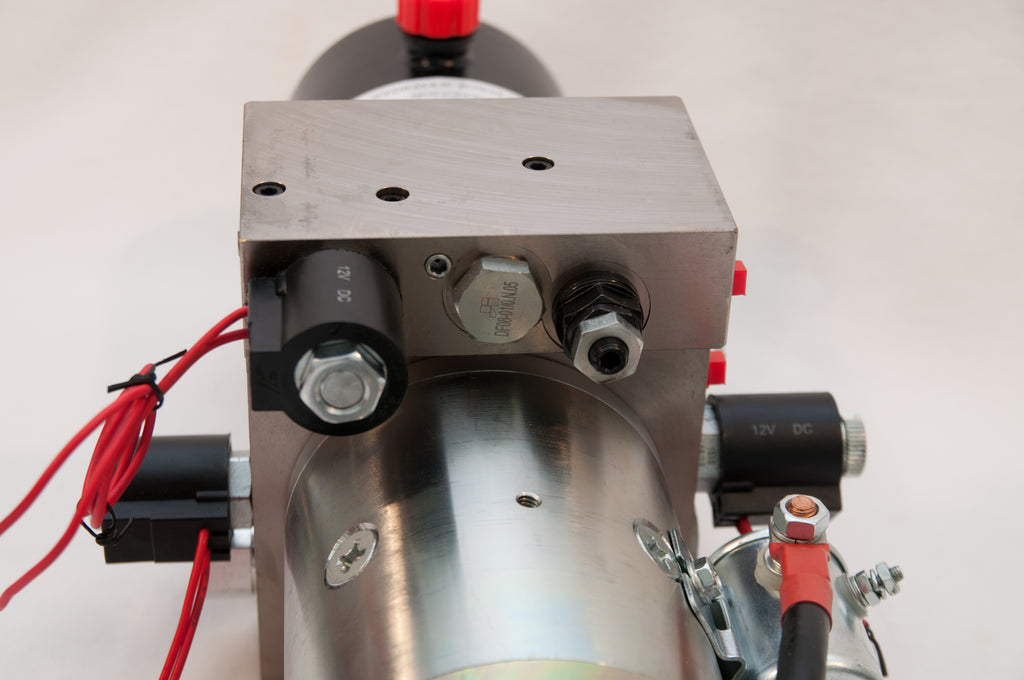

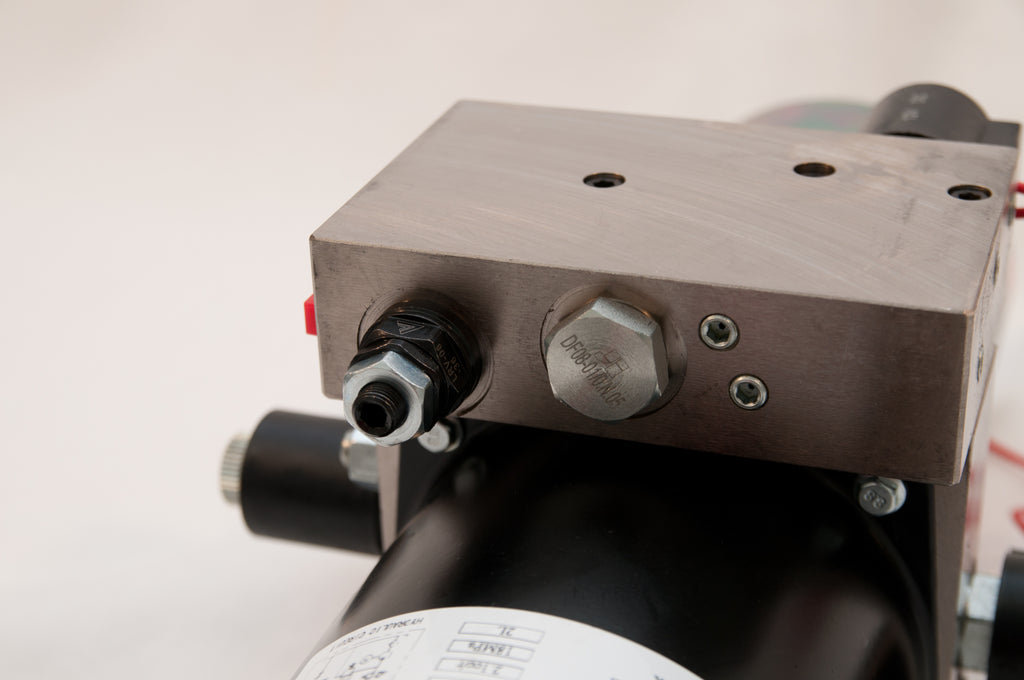

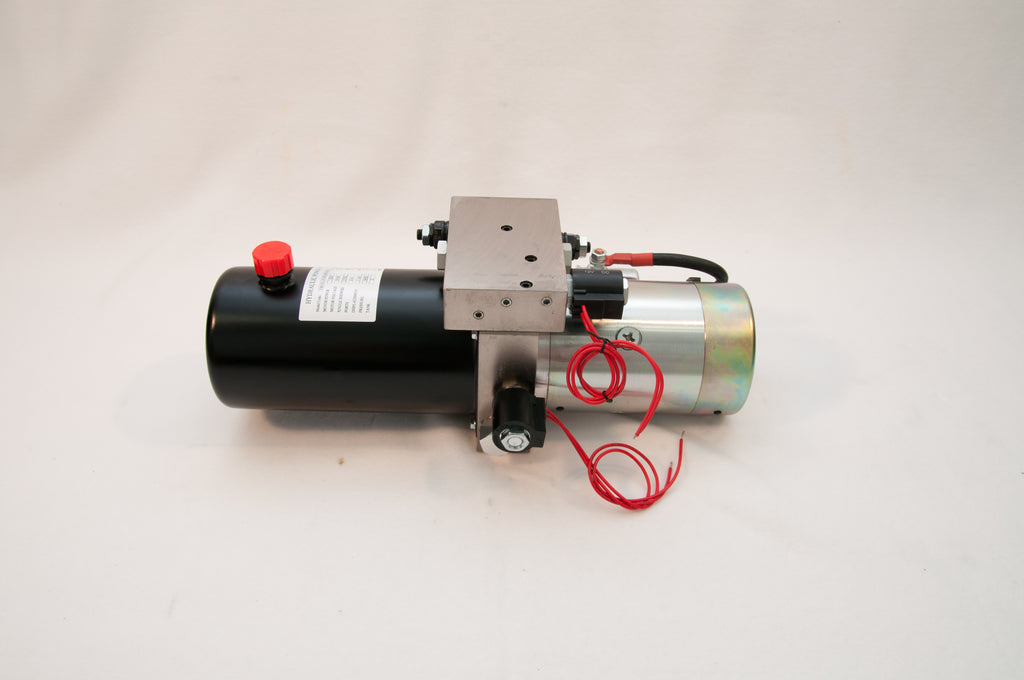

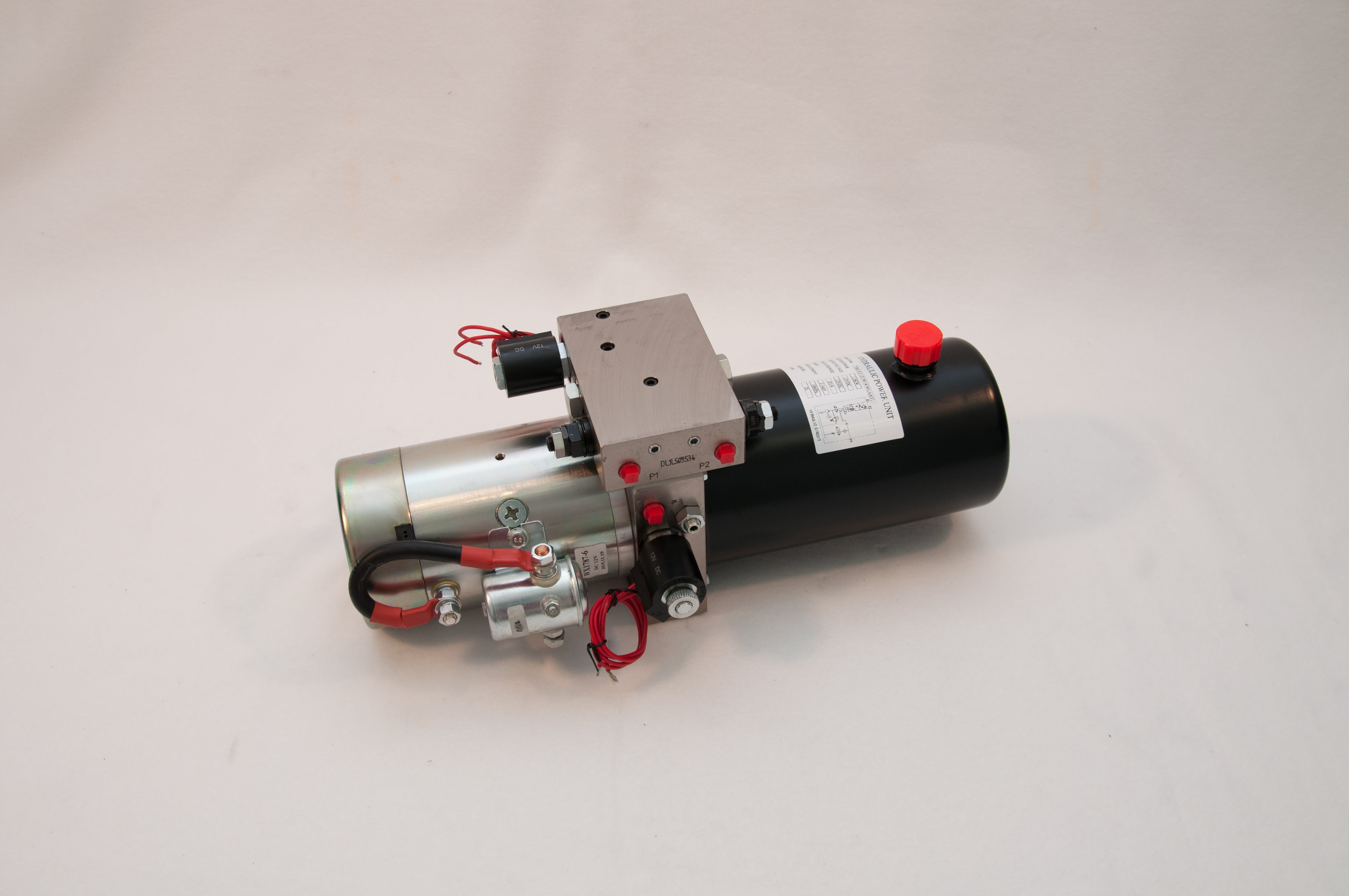

This units consists of a pressure balanced gear pump, DC motor, Multi Functional Manifold, solenoid valves, steel tank, etc. The lowering speed can be controlled by an adjustable needle valve. The left and right functions are equipped with a dual pilot operated check valve and cross over relief valves.
This power unit has two circuits:
- Power up / gravity down, single acting circuit to lift and lower the plow. (Port 3)
- Double acting left/right. This means left/right needs to be powered by a double acting cylinder on your plow. (Ports 1 & 2)

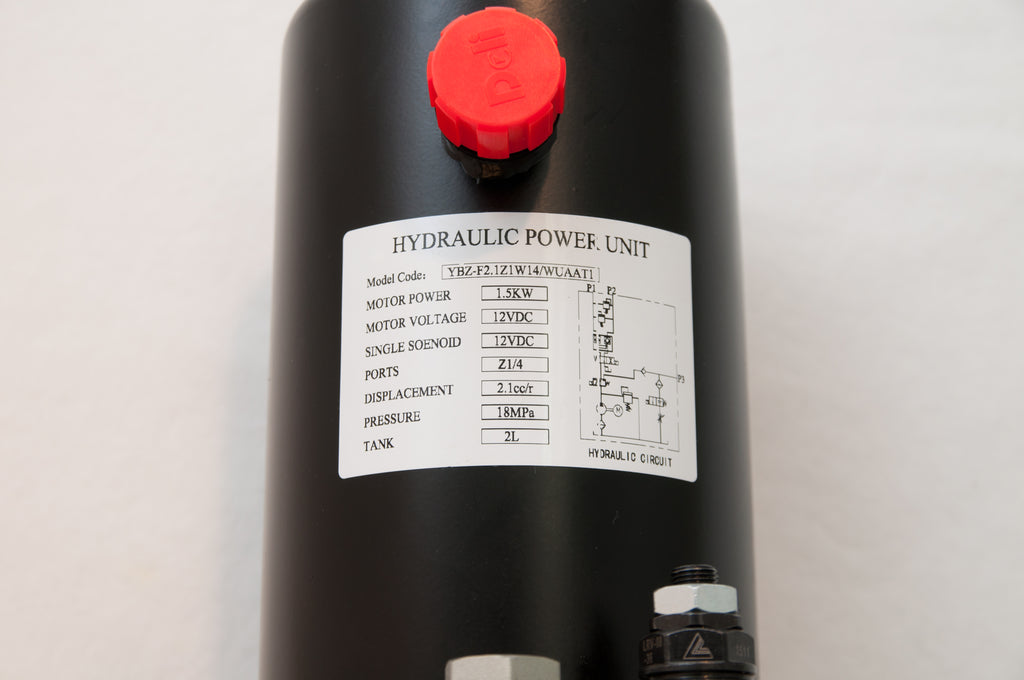

Motor Voltage: 12 VDC
Motor Power: 2 HP
Displacement: ,129 cubic inch/rev.
System Relief Pressure: 2610psi
Tank Capacity: .53 Gallons.
Length: 17.32 inches overall length.
Mounting holes: 3/8 x 16UNC on a 3-1/4 Center.
Fits: Meyers/Western and many many others!
1 Year Warranty
