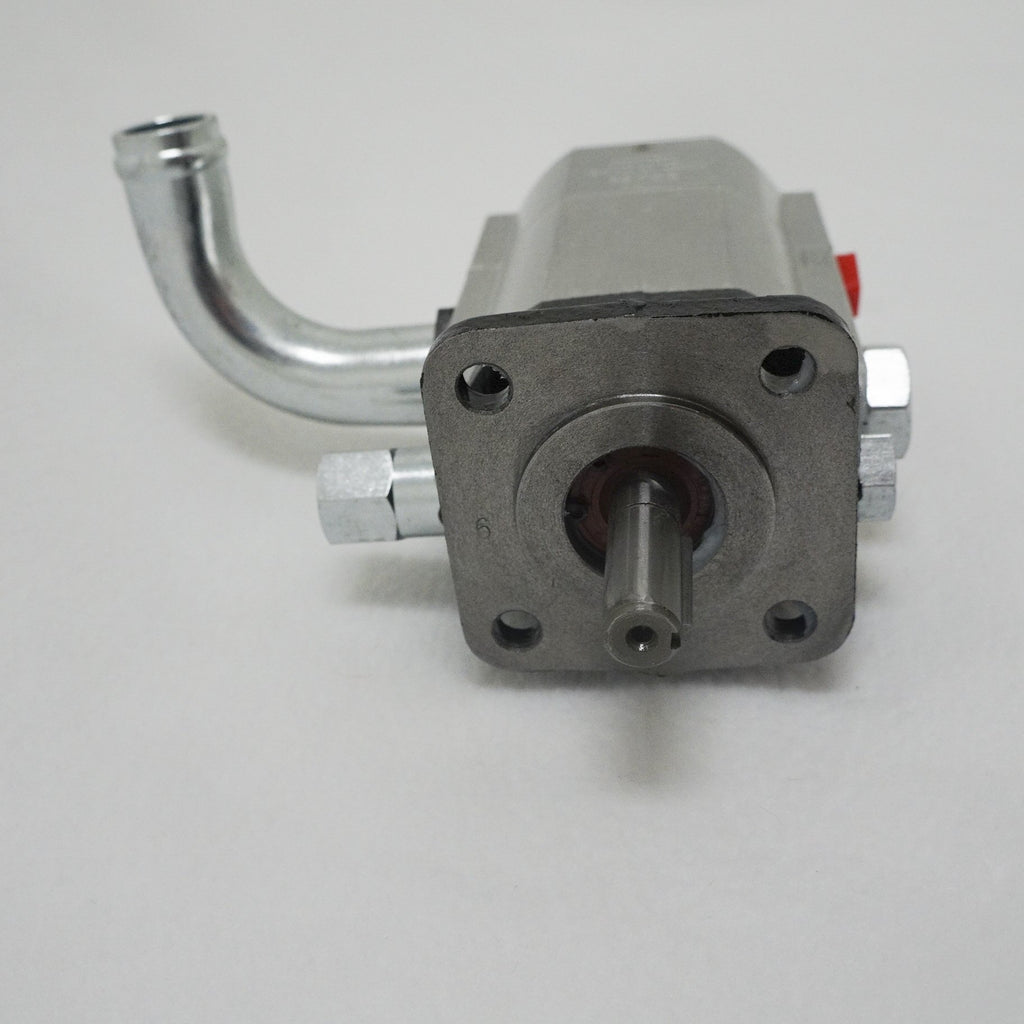

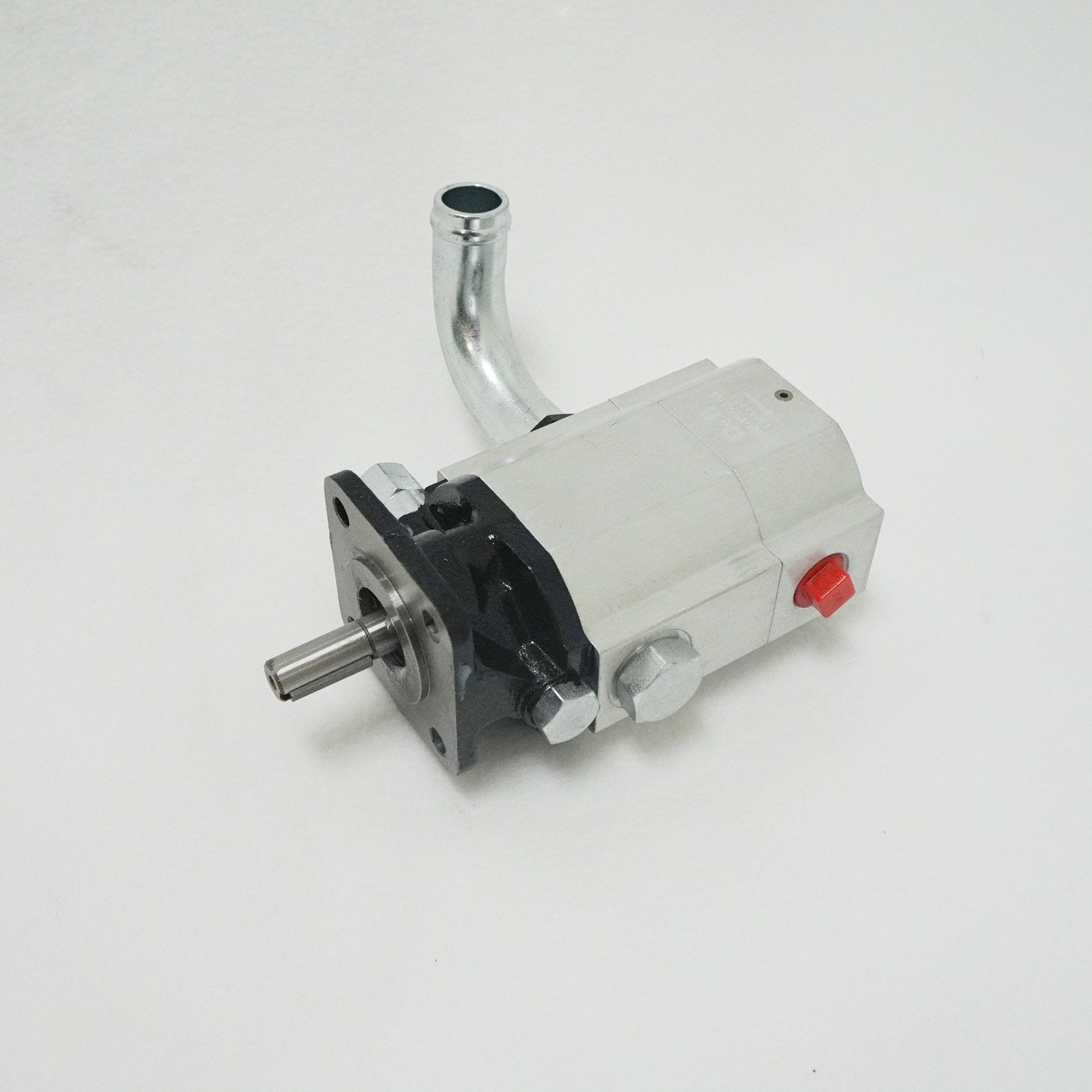

Tool Tuff 19 GPM Hydraulic 2-Stage Log Splitter Hydraulic Pump, Hi/Lo, 4000 PSI, w/Right-Angle Suction Fitting …

ToolTuff Direct

$175.00
SKU: 31-254

  • 2 Stage Log Splitter Pump
  • High-Flow 19 GPM (Gal/min) Flow Rate
  • OEM grade replacement for many log splitters
  • 90 degree right angle pickup tube fitting included
  • 6 month warranty & excellent Customer Service


Brand new 19GPM, 2 stage hydraulic replacement pump for log splitters. Fits many different applications, including newest models sold at Tractor Supply Co.

- It is brand new and has never been opened or used.

- The 2-stage pump can give you faster cycle times and higher possible pressure with a small engine. Excellent for use on log splitters. 85% efficient.

- Suggested applications: Presses, Log Splitters, Clamping Units and Compactors

- Specifications:

- New Hydraulic Log Splitter Pump 19 GPM @ 3600RPM
- Model # CBNA 16.5/3.6
- Shaft: â€
- Inlet port: 1â€
- Outlet port: †NPT
- 5.88" L without shaft
- Shaft Length: 1.5"
- 3†across body
- 3 -3/8†across mounting surface
- Minimum 9.5 HP or larger gas engine, direct drive only, horizontal shaft (can be mounted vertical or horizontal)
- For use with open center hydraulic systems only
- First Stage: 16.5 GPM @ 650 PSI
- Second Stage: 3.6 GPM @ 2500 PSI
- Maximum pressure: 4000 PSI
- Bolt circle: 2.83in.
- 4 holes spaced 2†on center
- Mounting hole diameter: .344in.
- Woodruff key: 1/8in.
- Rotation is clockwise (looking from the motor to the pump /shaft face)
- Flow rates on the hi-low tandem pumps are 0.256 cu in/rev on the low flow and 0.793 cu in/rev on the high flow pump.
- This 2 stage pump can give you much faster cycle times and higher possible pressures with a small engine. Excellent for use on log splitters. 85% efficient.
