Trunnion Mount (MTD Replacement Part) Hydraulic Log Splitter Cylinder, 4.5" Bore x 24" Stroke, (No Handle Mounting Flange) 918-0769A

Tool Tuff

$359.99
SKU: 31-117

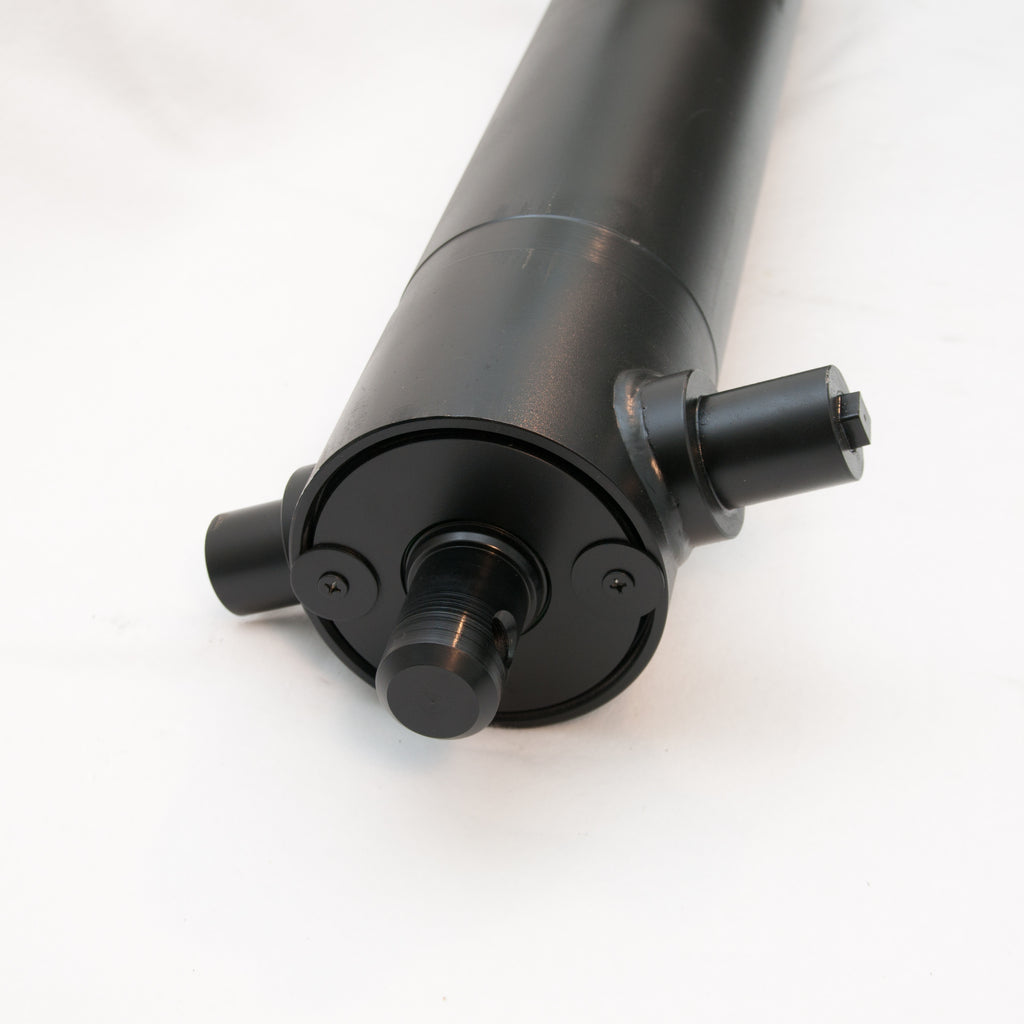

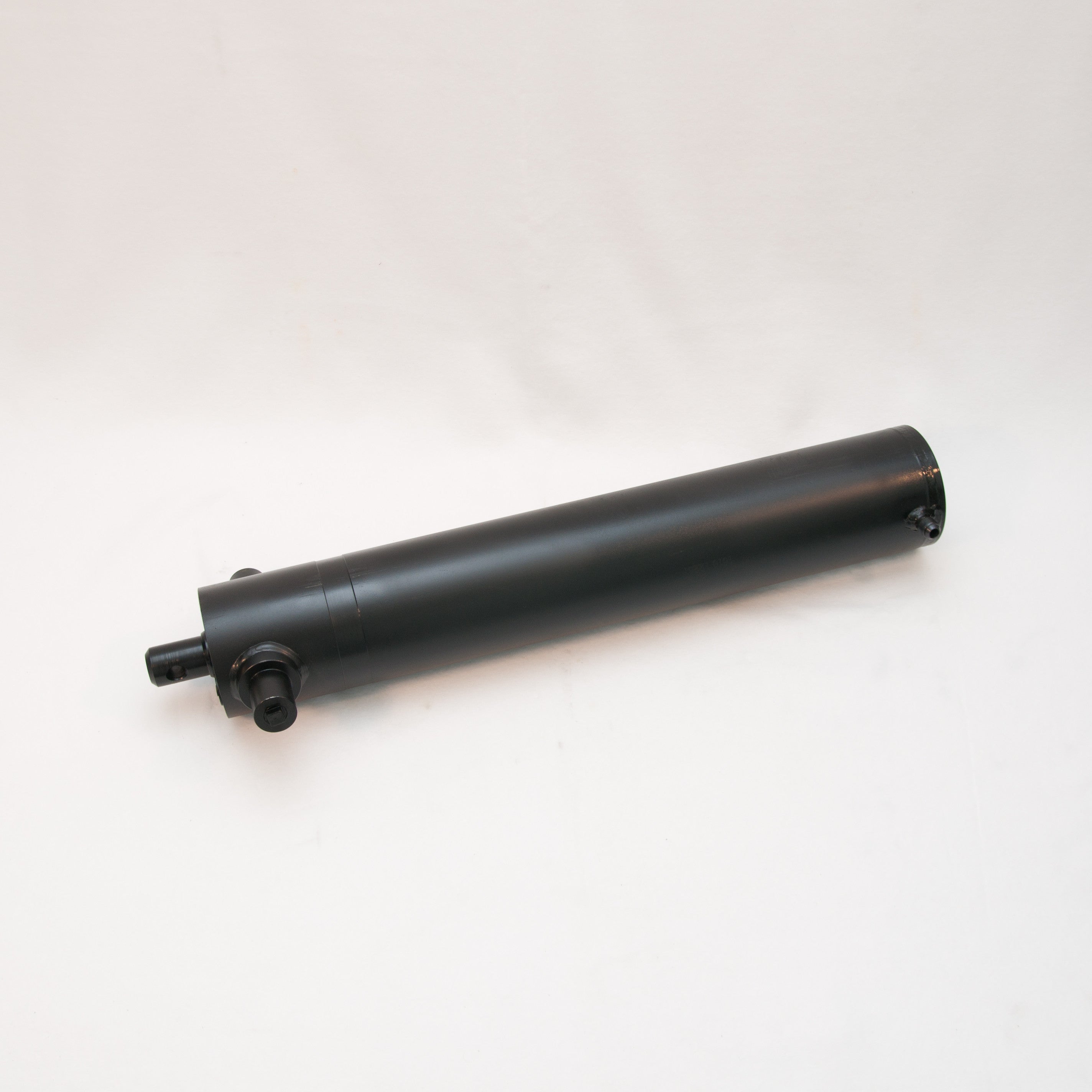

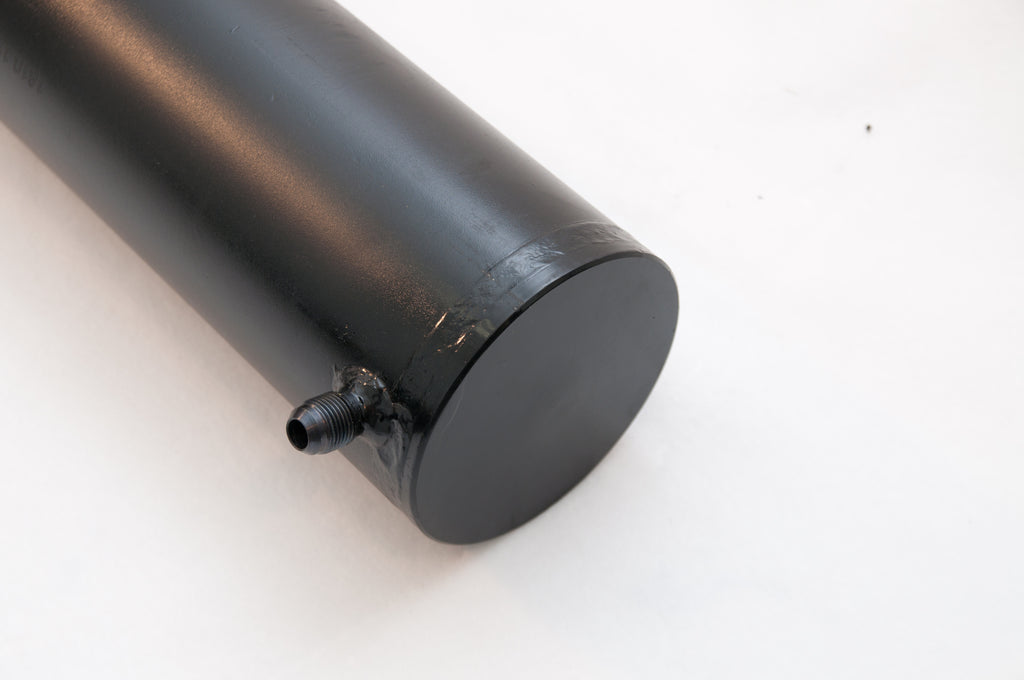

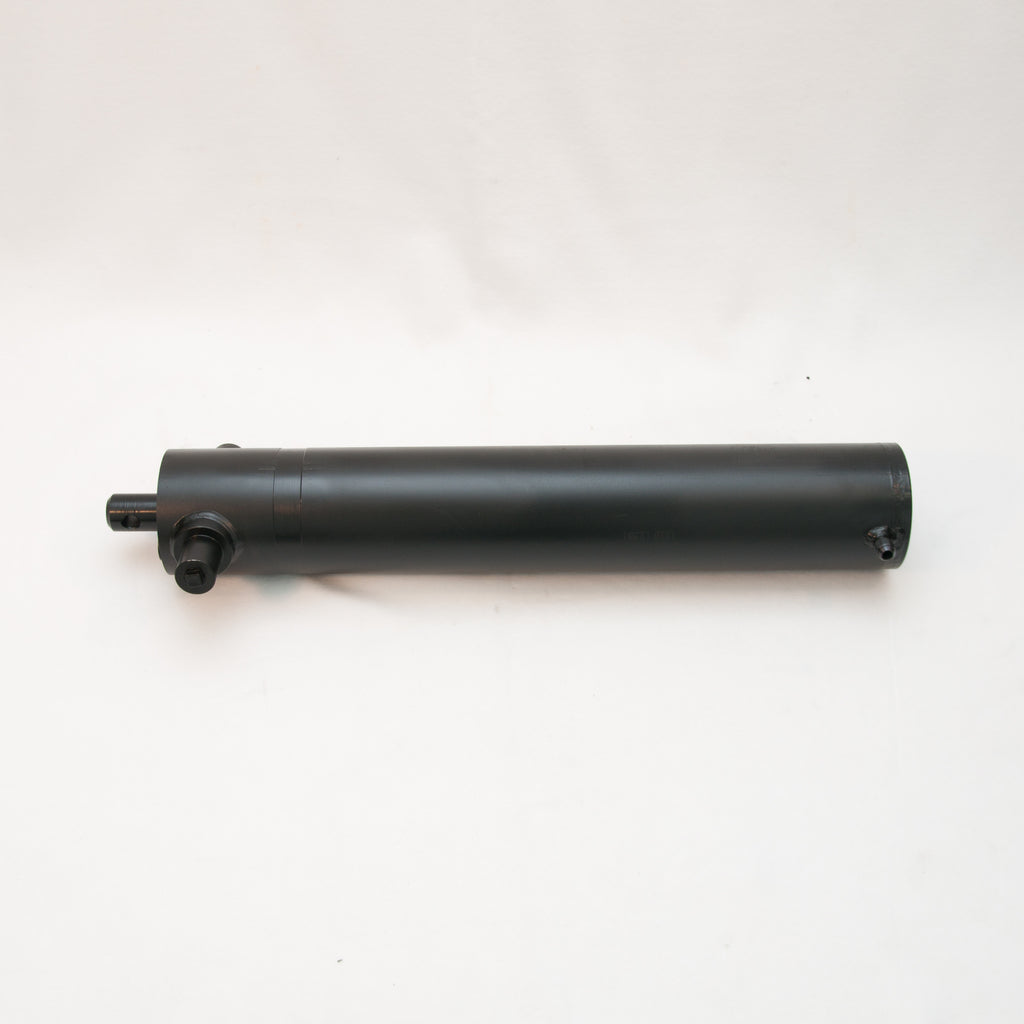

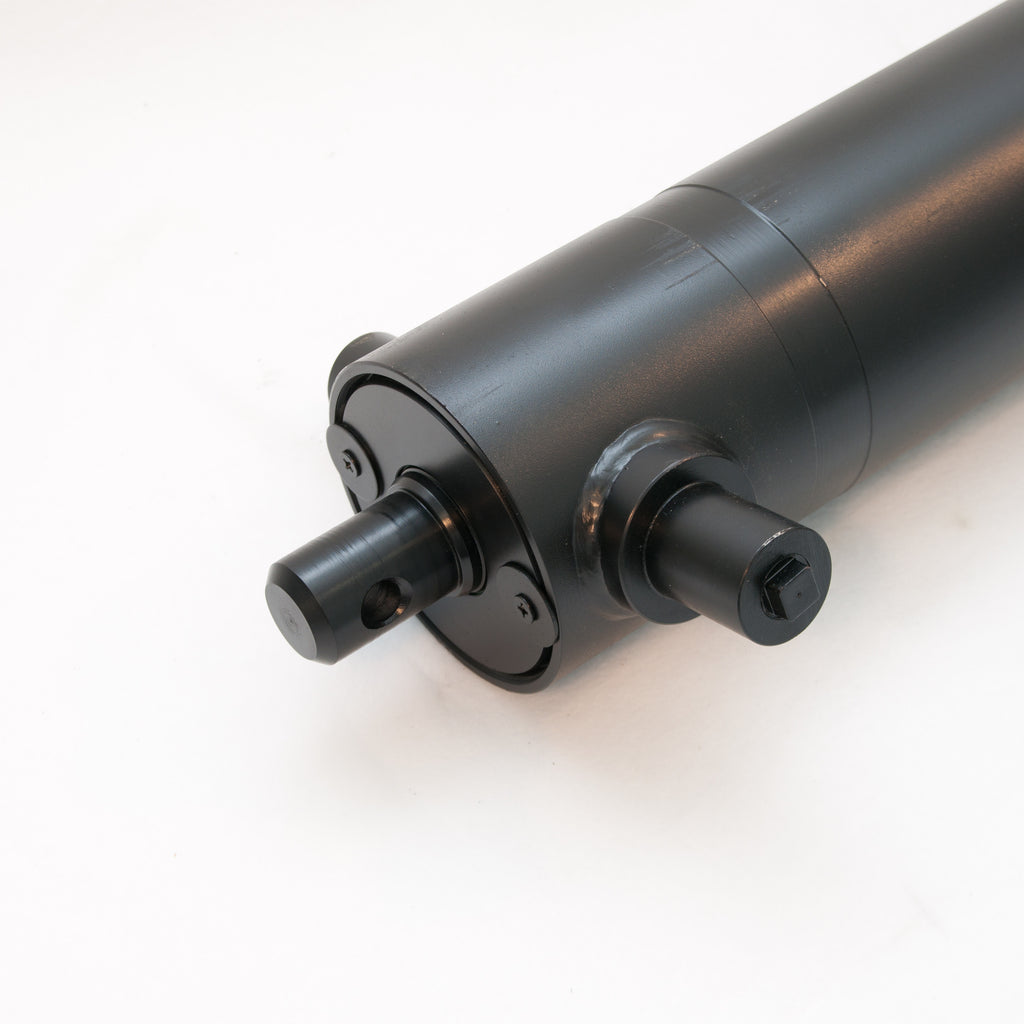

MTD 4-1/2” hydraulic log splitter cylinder.

This cylinder is an OEM-grade replacement part for Troy Built, Cub Cadet, Bolens, and MTD “Trunnion Mount” log splitters.

Used on 25 Ton thru 28 Ton units.

Ports: JIC-8 Male & 1/2" NPTF Female Port



 Quick Specifications:

  • Fits MTD splitters with Hydraulic Cylinder Part number: 918-0769A/718-0769
  • All welded design
  • Trunnion mount.
  • Double acting
  • Re-buildable (seals can be replaced)
  • 24" stroke
  • 4-1/2" diameter bore (Measures 5" OD)
  • 3500 maximum operating pressure
  • Painted black
  • Ships via Fed-Ex ground to the lower 48 states only.
