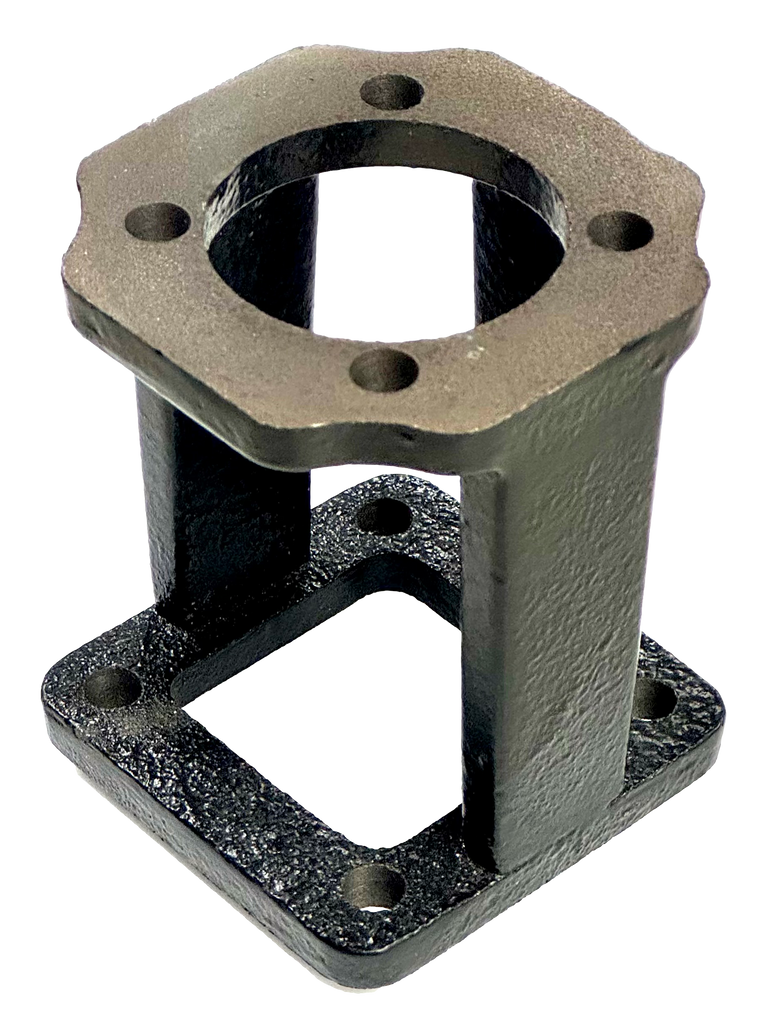

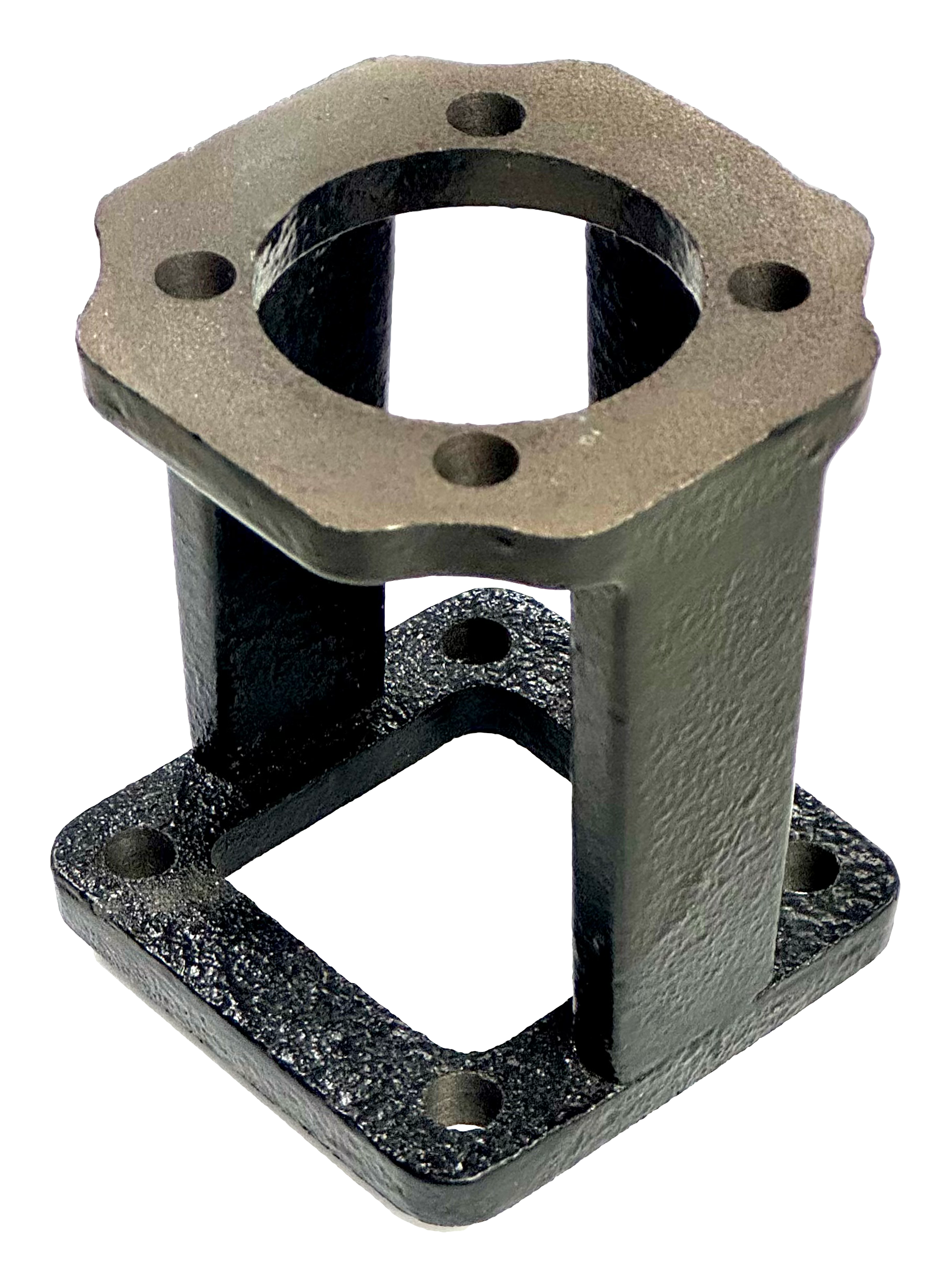

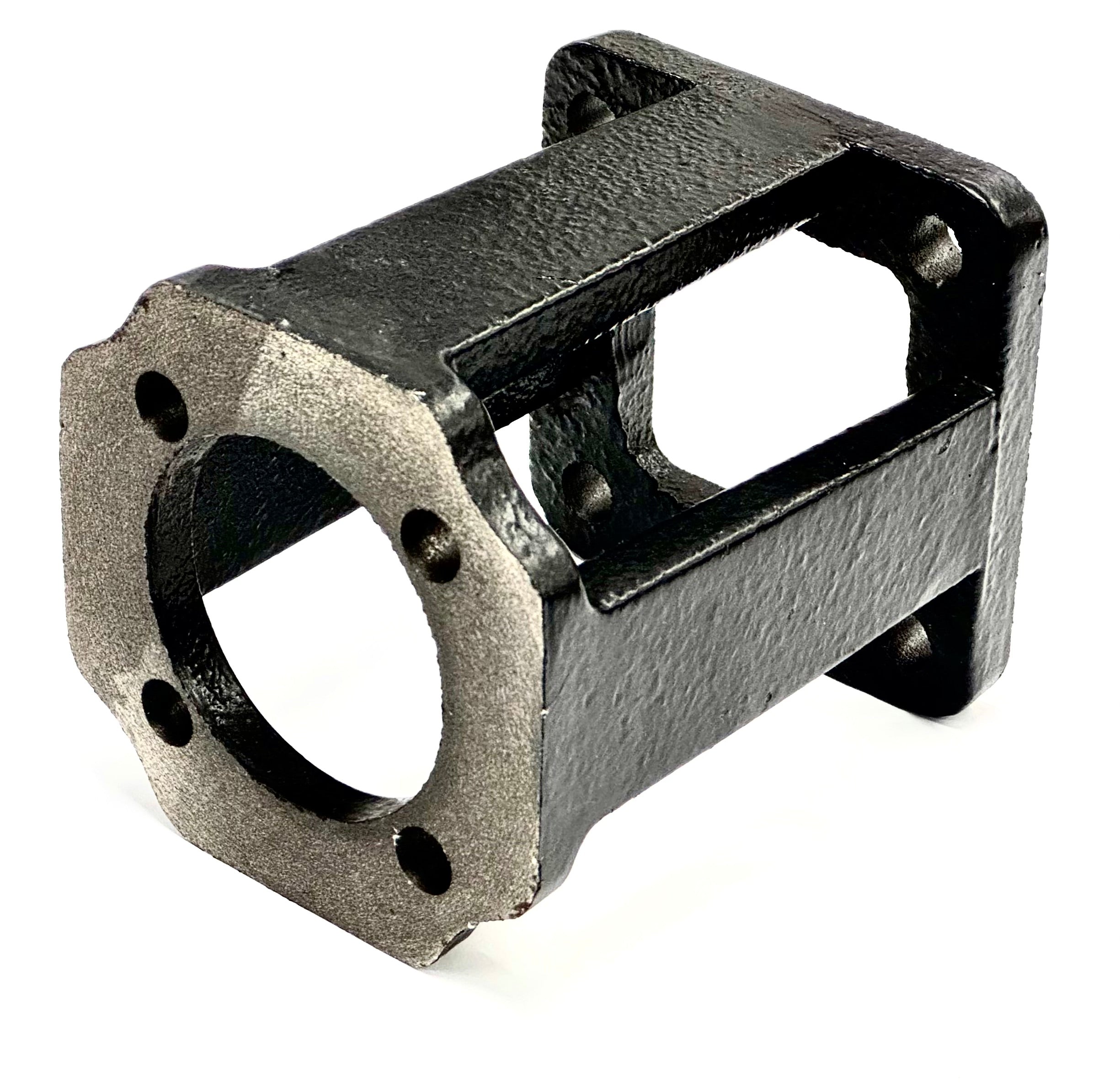

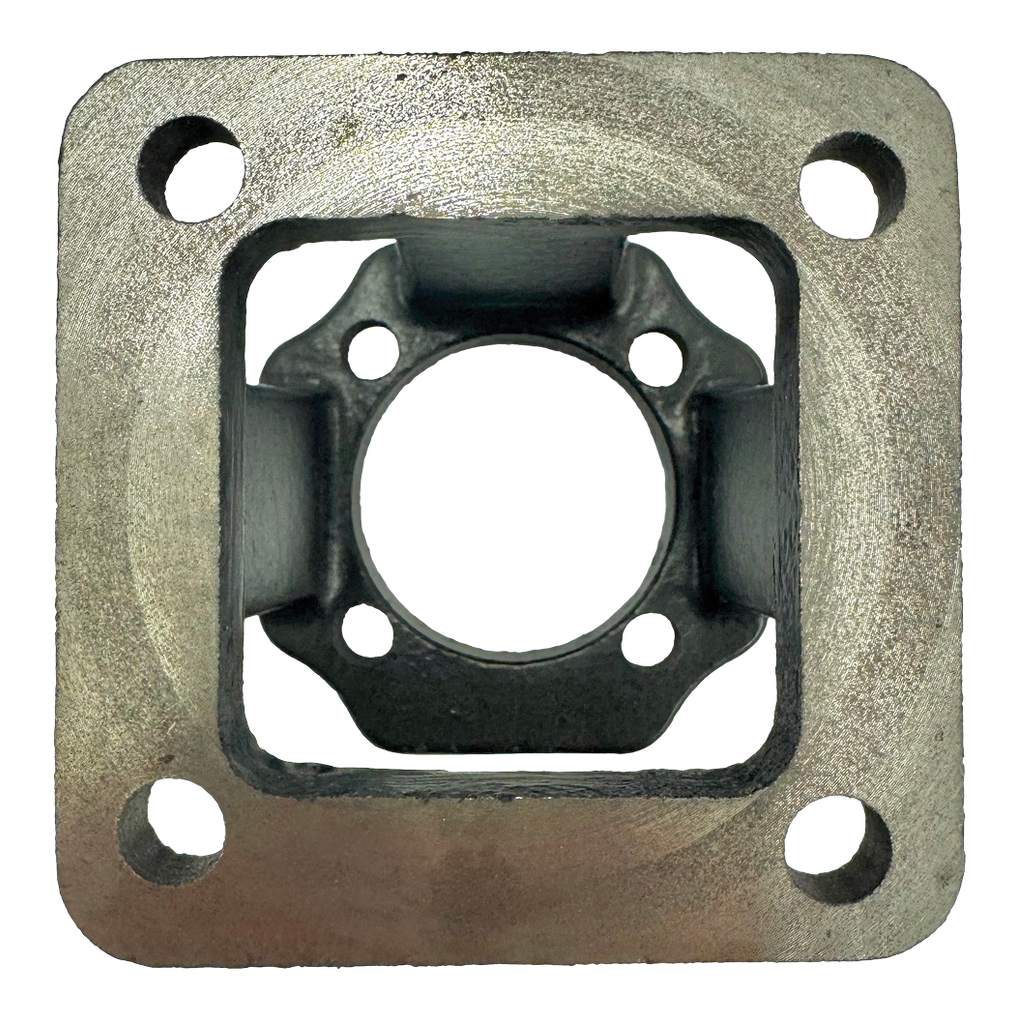

Log Splitter Hydraulic Pump Mount Bracket, 2.5" Square to 2" Square (for use w/ 5-7 Hp Engines, 11-13 gpm pumps, LO75)
Small Pump Mounting Bracket
Used to attach a hydraulic pump to a small engine, 5- to 7-horsepower engine.
This is the OEM mount used by Husky, Splitmaster, SpeeCo. and Oregon 20, 21 and 22 ton units...Can also be used on many other brands.

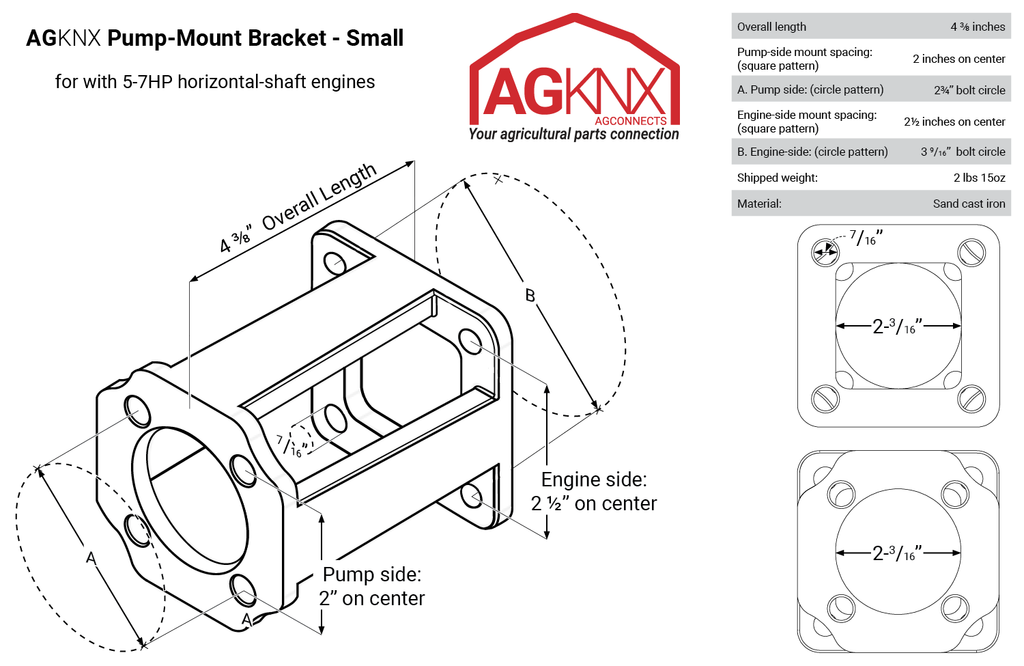

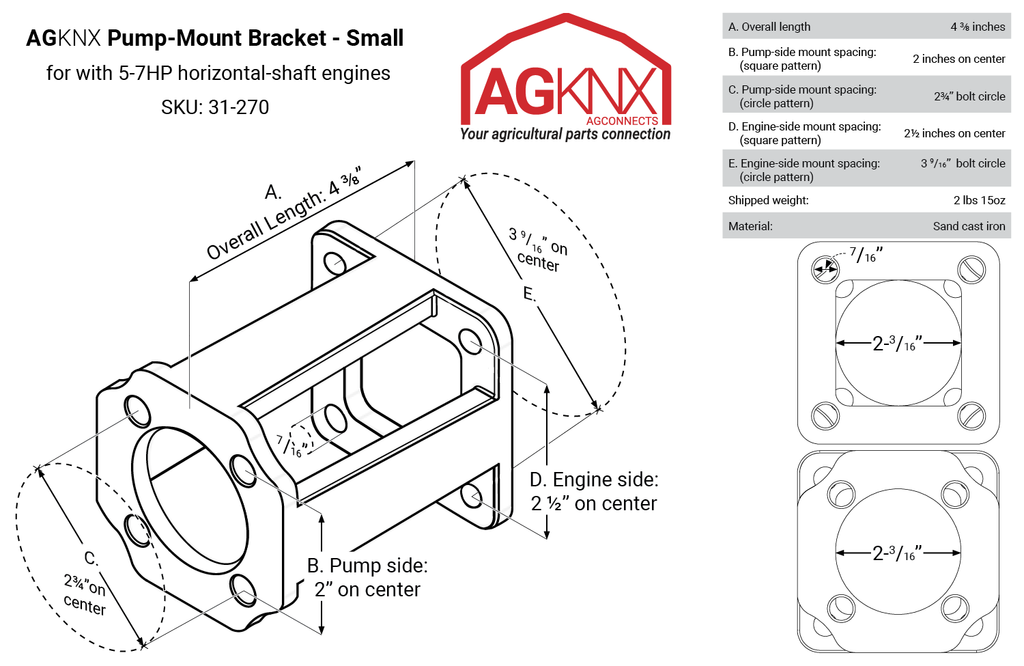

See diagram for specs:
- Overall length (height): 4.365"

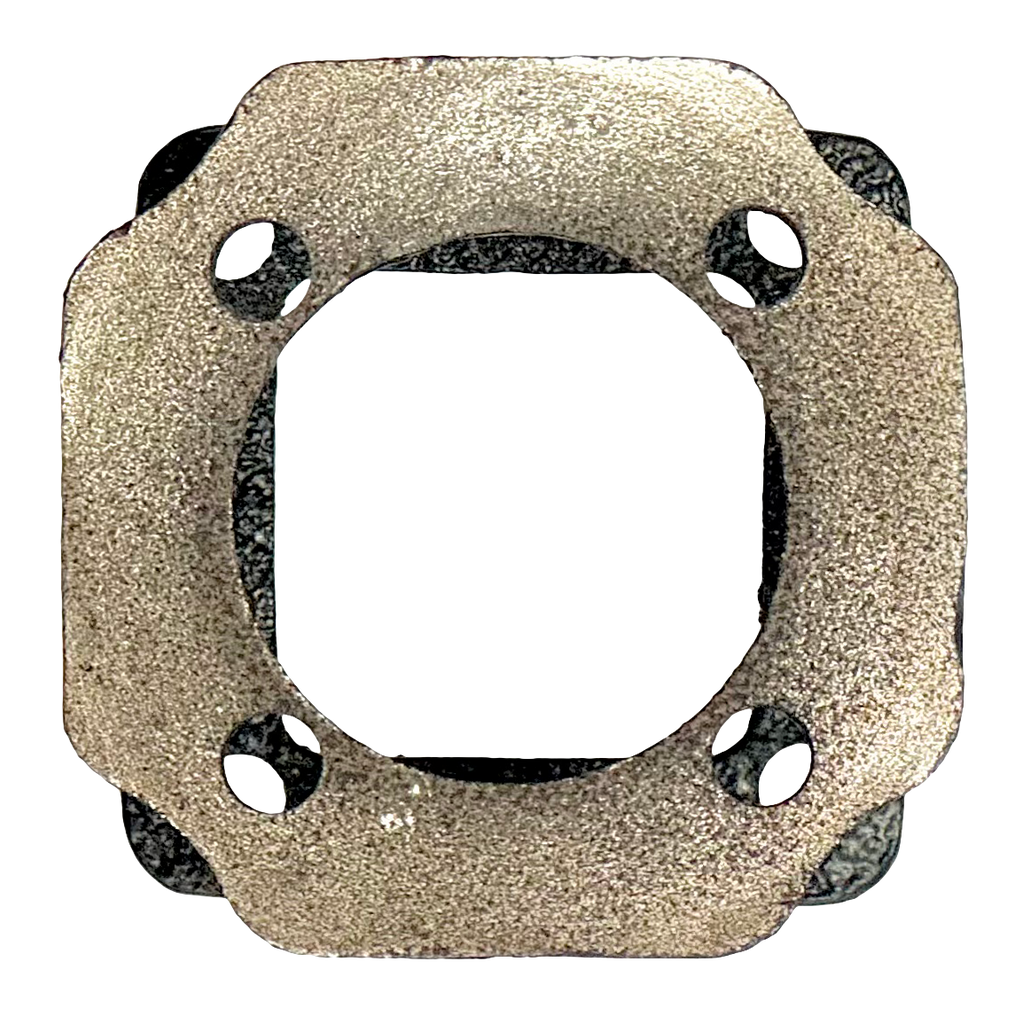

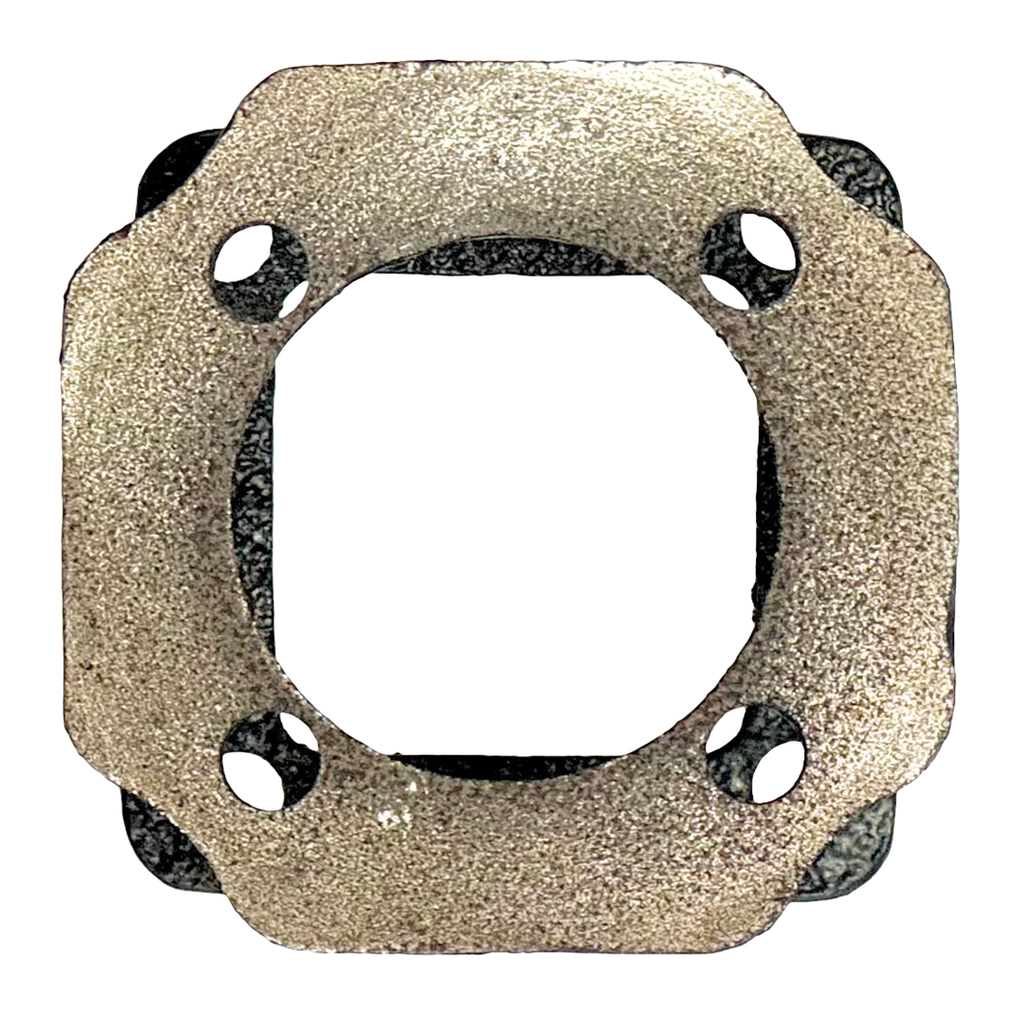

- Pump-side hole spacing (4 hole pattern): 2" on-center (square pattern), or 2-3/4" bolt circle

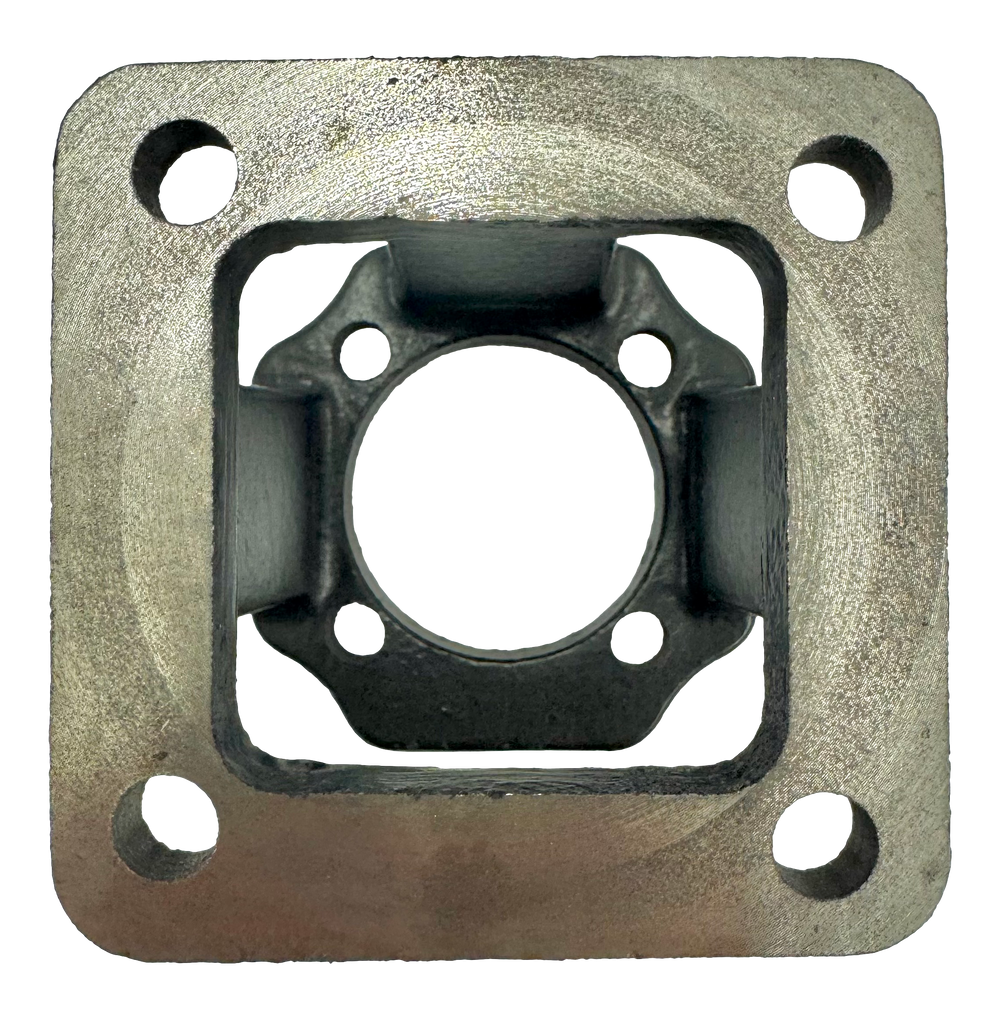

- Engine-side hole spacing (4 hole pattern): 2-1/2" on-center (square pattern), or 3-9/16" bolt circle
- Circular (coupler-side) clearance is 2.2"
- Square (engine-side) clearance is 2.2" x 2.2"
- Powder Coated
- Sand-casted Iron - has sand casted texture - pump and engine mount surfaces are machined smooth
