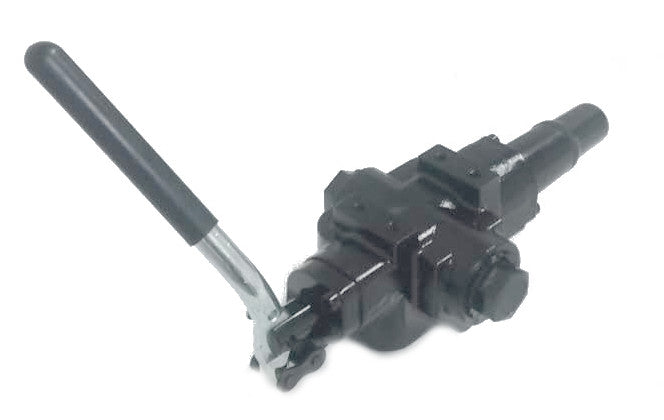

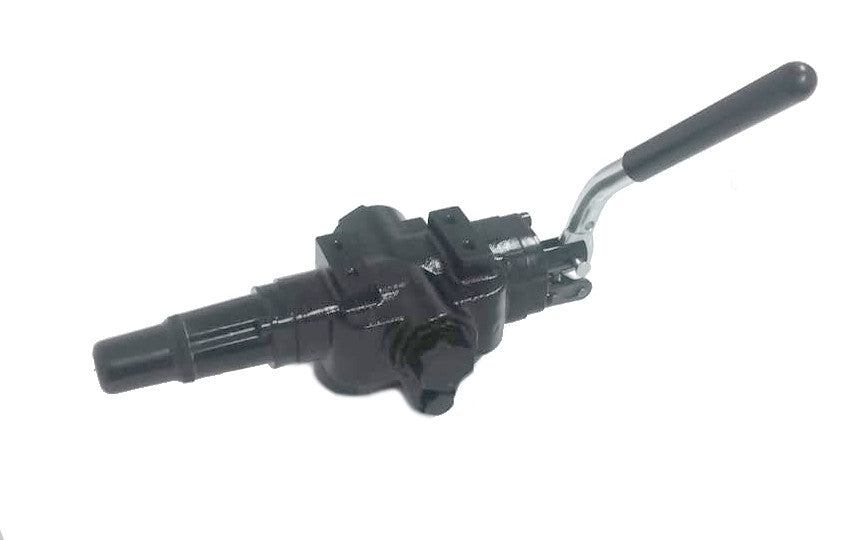

High Flow Log Splitter Control Valve, 32 gpm, 3500 psi, Adjustable Detent



Single spool, Open center.

Large ports and body accommodate high flows up to 32 gallons/min

  • Relief valve set at 3500psi (adjustable

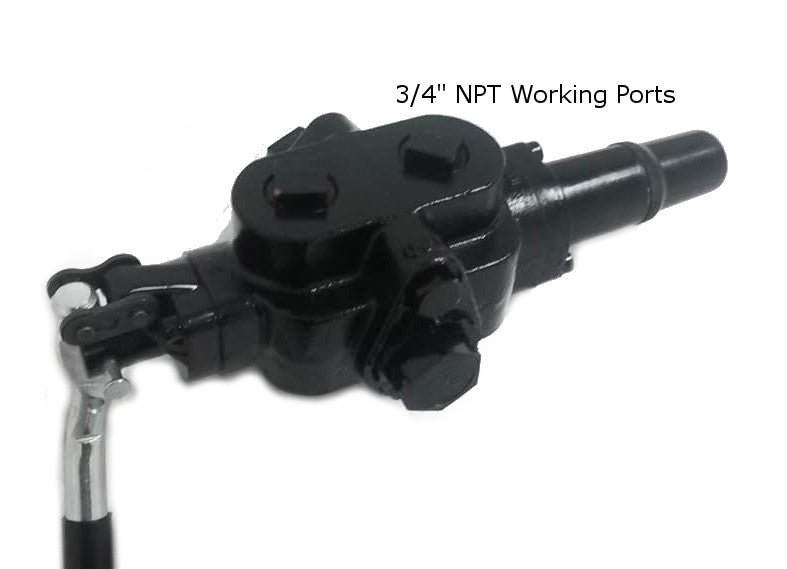

  • Working ports 3/4”NPT.

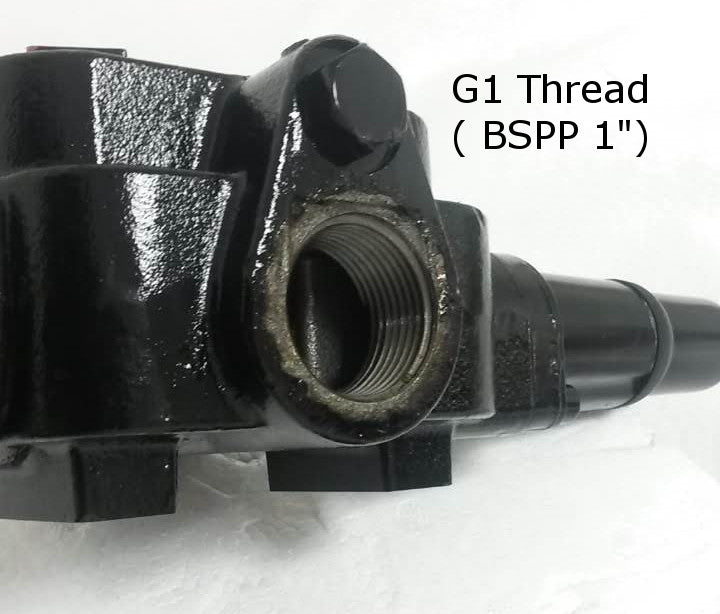

  • In/Out ports 1" BSPP
  • Detent Pressure set at 700 psi but is adjustable.
  • Compatible with most splitters (SpeeCo, MTD, Brave, Swisher etc)
  • Threaded end cap for easy detent adjustment



Mounting bracket holes (4) are M8 thread pitch and are spaced 1" x 2-5/8" apart. Valve can also be mounted just by a pipe nipple from working port to cylinder.



This is the next generation in log splitter valves. The detent is usually what wears out and causes valves to fail. This valve allows user to adjust the kick out pressure to what they need and as detent balls and grooves wear.

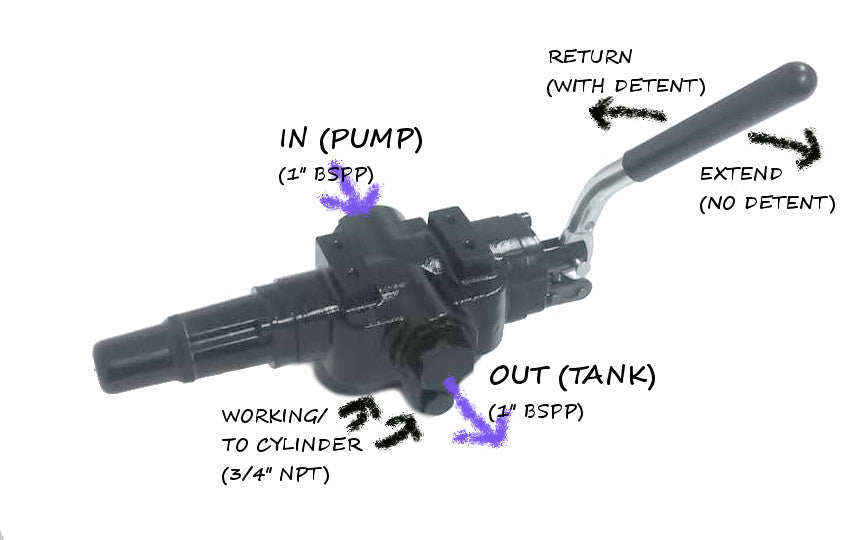

Please view the schematic in the photo's section to compare the port orientation to your existing log splitter port layout, some existing valves have the in/out valves reversed.
