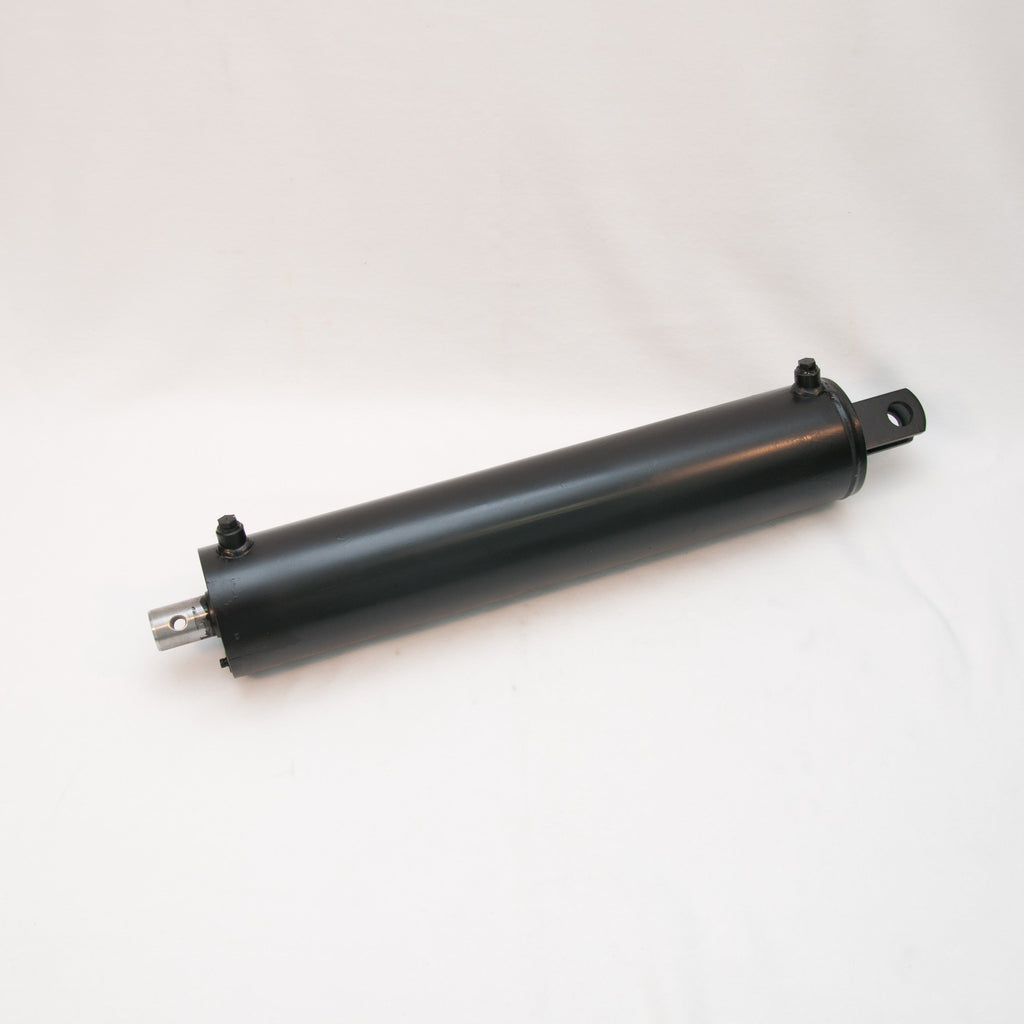

Hydraulic Log Splitter Cylinder 5" Bore x 24" Stroke, Clevis Mount Style, DHT Replacement,

Tool Tuff

SKU: 31-172

5" Bore x 24" Stroke Hydraulic Log Splitter Cylinder - OEM Replacement

DHT Replacement

Quick Specifications:

  • All welded design
  • Direct replacement for DHT
  • USA seller
  • Double-acting (2 ports, forward and reverse action)
  • Rebuildable (seals can be replaced)
  • 2" Chrome rod with 14mm mounting hole for wedge mounting/Rod end is machined to 1-3/4" to fit wedge
  • Double mounting clevis design to accept 1-1/8"
  • 24" stroke
  • 5" diameter bore
  • 1/2" NPT hydraulic ports
  • 3500 maximum operating pressure
  • Painted black
  • 1-1/8" Clevis mounting holes
  • Ships via UPS ground to the lower 48 states only!!!
  • The screw that is shown in the end of cylinder on rod side must be in place at all times during operation, do not remove this when you receive the cylinder!
