Log Splitter Hydraulic Pump - 13 GPM

Tool Tuff

$124.00
SKU: LSPM013

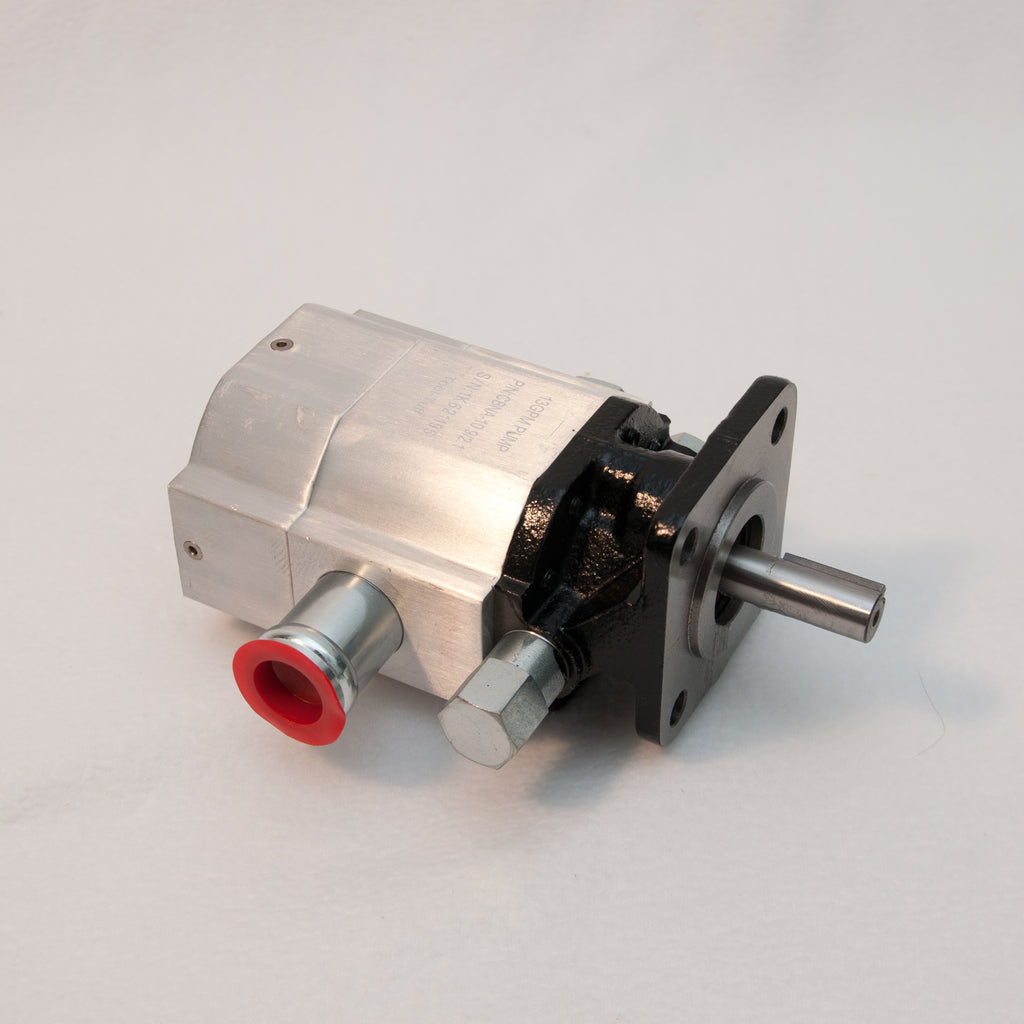

Hydraulic Gear Pump - 13GPM, 2-Stage - NEW

Model GP-CBN-130

The 2-stage pump is excellent for use log splitter, press & machine tools, power units for snow plows, small displacement and modest pressure hydraulic system. It can provide faster cycle times & higher possible pressure with small engine.

This is same pump used by SpeeCo, Champion, Oregon, MTD and many others. Use as a replacement or a "build it yourself splitter"

The 2-stage pump can give you faster cycle times and higher possible pressure with a small engine.  Excellent for use on log splitters, 85% efficient.

Features & Specifications:

  • Stages: 2
  • GPM: 13
  • Construction: Extrusion Aluminum
  • Max. Operation Speed: 3600RPM
  • Max. Operation Pressure: 4000PSI
  • Shaft Extension: 1.5"
  • Shaft Diameter: 1/2"
  • Keyed Shaft: 1/8" Squarex
  • Inlet Port: 1.0" Diameter Tube
  • Outlet Port: 1/2" NPT
  • Weight: 6.3lbs
  • Ships USPS Priority medium flat rate box to all 50 USA states.
  • When looking at shaft and pump mounting surface, the shaft spins Clock Wise.  Your engine needs to spin Counter Clockwise as you look at that shaft.
