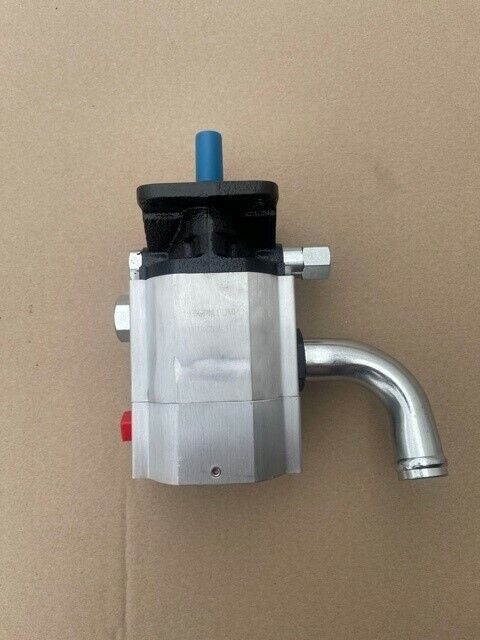

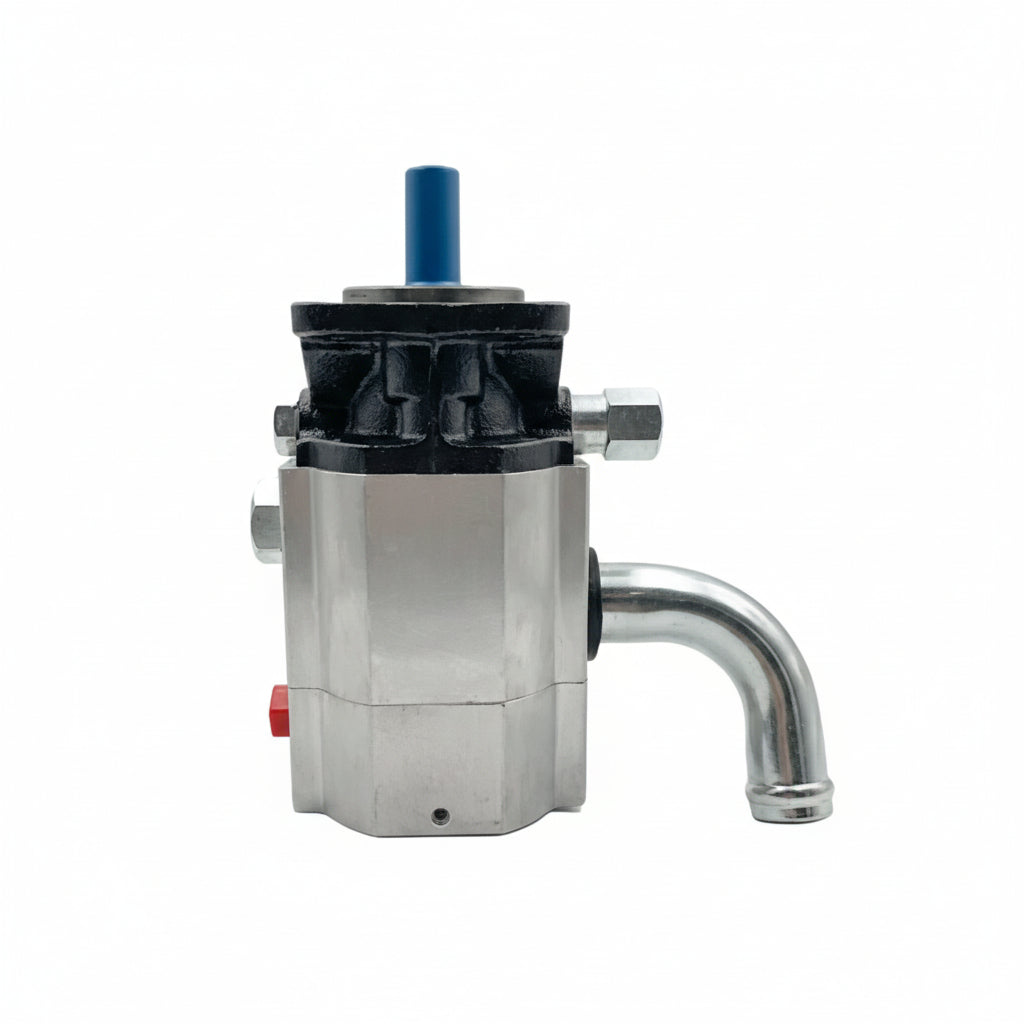

Tool Tuff 19.5 GPM Hydraulic 2-Stage Log Splitter Hydraulic Pump, Hi/Lo,w/Right-Angle Suction Fitting. Replace for Black Diamond & DHT

ToolTuff Direct

SKU: 31-263

The 2-stage pump is excellent for use on log splitters, press & machine tools, power units for snow plows, small displacement and modest pressure hydraulic system. It can provide faster cycle times & higher possible pressure with small engine.

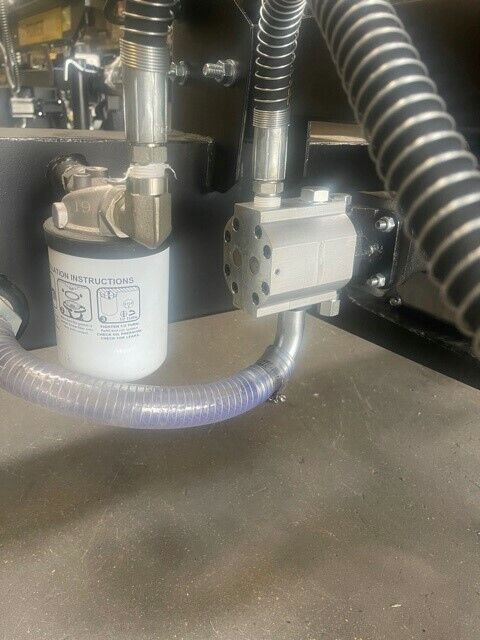

This is same pump used by certain vintage Black Diamond and DHT 35 and 37 Ton Log splitters. If you have a Black Diamond/DHT with the elbow for the suction hose this is the replacement.

The 2-stage pump can give you faster cycle times and higher possible pressure with a small engine.  Excellent for use on log splitters, 85% efficient.

Features & Specifications:

  • Stages: 2
  • GPM: 19.5
  • 9 plus HP required¬†
  • Construction: Extrusion Aluminum
  • Max. Operation Speed: 3600RPM
  • Max. Operation Pressure: 3500PSI
  • Shaft Extension: 1.5"
  • Shaft Diameter: 1/2"

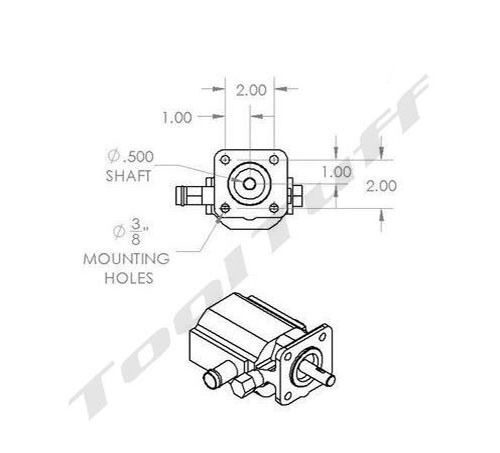

  • Bolt Pattern: 4 bolts on 2" x 2" square (See listing photo
  • Keyed Shaft:¬†1/8" Square
  • Inlet Port: 1.0" Diameter¬† Bent Tube
  • Outlet Port: 1/2" NPT¬†(Do NOT use an orb fitting which is an o-ring fitting)
  • Weight: 6.3lbs
  • Ships USPS Priority medium flat rate box to all 50 USA states.
  • When looking at shaft and pump¬†mounting surface, the shaft spins Clock Wise.¬† Your engine needs to spin Counter Clockwise as you look at that¬†shaft.
